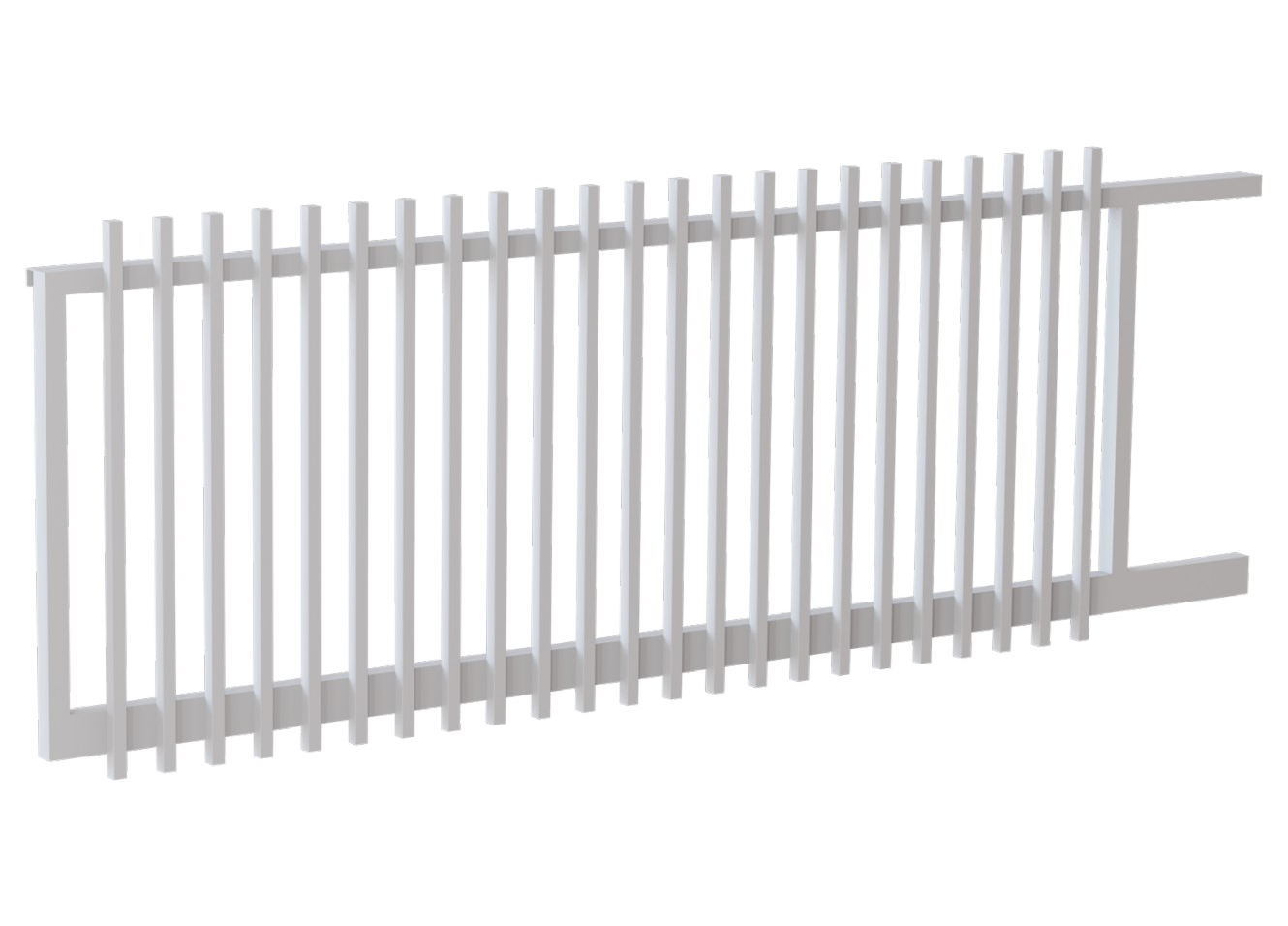

32 x 32mm Radiator Sliding Gate – 90mm Gap | Aluminium Gate

Aluminium Batten Sliding Gate (Radiator Style) – Custom Made

32 x 32mm battens | 90mm spacing | Custom widths up to 8000mm

Upgrade your property with a custom aluminium batten sliding gate, designed for a sleek, modern architectural finish.

Featuring a refined 32 x 32mm batten profile and a balanced 90mm spacing, this gate delivers the ideal combination of privacy, airflow, and visual openness—perfect for contemporary homes.

• ✔ Made to order
• ✔ Balanced privacy and airflow (90mm spacing)
• ✔ Smooth sliding operation
• ✔ Lightweight yet strong aluminium design
• ✔ Custom widths up to 8000mm

Why Choose This Sliding Gate?

Refined Modern Design

The slimmer 32 x 32mm battens create a more subtle and modern appearance, ideal for architectural builds and high-end finishes.

Balanced Privacy & Airflow

The 90mm spacing provides a clean, open look while still maintaining a level of privacy suitable for most residential applications.

Built for Strength & Longevity

Manufactured from 6063 T6 aluminium, this gate is corrosion-resistant and suited to Australian coastal and inland conditions.

Fully Custom Made

• Widths from 250mm to 8000mm
• Multiple height options
• Choice of batten sizes and spacing configurations

Automation Ready

The frame extends 400mm beyond gate width to allow for motor racking, making it ideal for automated sliding gate systems.

Key Features

• Face-welded aluminium battens
• 30 design combinations (10 styles × 3 spacing options)
• Automation-ready frame design
• Premium powder coated finish
• Rust-proof aluminium construction
• Low maintenance – no repainting required

Colour Options

Available in a wide range of powder coated finishes:

• Pearl White
• Surfmist
• Shale Grey
• Dune
• Silver Pearl
• Primrose
• Jasper
• Woodland Grey
• Ironstone
• Monument
• Satin Black
• Basalt

General Specifications

• 50 x 50 x 3mm SHS frame (mitred corners)
• 50 x 100 x 3mm RHS frame
• Extends 400mm for motor racking
• Includes 2 wheel cutouts
• Maximum width: 8000mm

Product Specifications

• Material: Powder Coated Aluminium (6063 T6)
• Heights: 900mm, 1200mm, 1500mm, 1800mm, 2100mm, 2400mm
• Widths: 250mm – 8000mm
• Tubes: 32 x 32 x 1.2mm Screwflute SHS
• Edge: 2mm radius
• Spacing: 90mm
• Weld: Face welded onto rail
• Caps: Cast caps (top only)
• Powder Coat: Interpon standard range
• Brackets: 40 x 40mm single lug (sold separately)

Applications

• Driveway sliding gates
• Architectural residential builds
• Modern boundary fencing
• Automated sliding gates

Lead Time

Approx. 2–3 weeks (made to order)

FAQs

Can this gate be automated?

Yes, it is designed with a 400mm extension to suit motor racking systems.

What is the maximum width?

Up to 8000mm depending on configuration.

Are smaller battens better?

32 x 32mm battens provide a more refined, modern appearance compared to larger profiles.

Is aluminium suitable for outdoor use?

Yes, aluminium is rust-resistant and ideal for long-term outdoor applications.

Do you supply matching fencing?

Yes, matching panels, swing gates, posts and accessories are available.

Need Help?

Send us your measurements or plans and we’ll recommend the perfect gat

The Batten Radiator Fencing Range is an easy-to-install pre-welded system with a wide range of extrusion and small, medium and large spacing options.

Face-Welded Extrusion Options

Extrusions are face-welded to horizontal rails, giving a contemporary 'radiator' look and creating an ever-changing privacy element when viewed from different angles.

Get the Look

Consisting of a unique range of panels, swing gates, sliding gates, posts & accessories, the Radiator Fencing range is the perfect choice in architectural design & functionality.

Coat to Order

On Trend Powdercoating Colours

The Aluminium Batten Radiator Fencing is powder coated to order and is available in a range of Interon Powder Coating colours. The best colour for your aluminium fencing will depend on your home's colour scheme and your preferences. Below are some of our most popular on trend Powder Coating colours:

General Specifications:

• 50 x 50 x 3mm SHS Frame (mitred top corners)
• 50 x 100 x 3mm RHS Frame
• Extends 400mm further than gate width for motor racking & includes 2 wheel cutouts
• Maximum Sliding Gate Width allowed = 8000mm

Product Specifications:

Lead Time: Approx. 2–3 weeks
