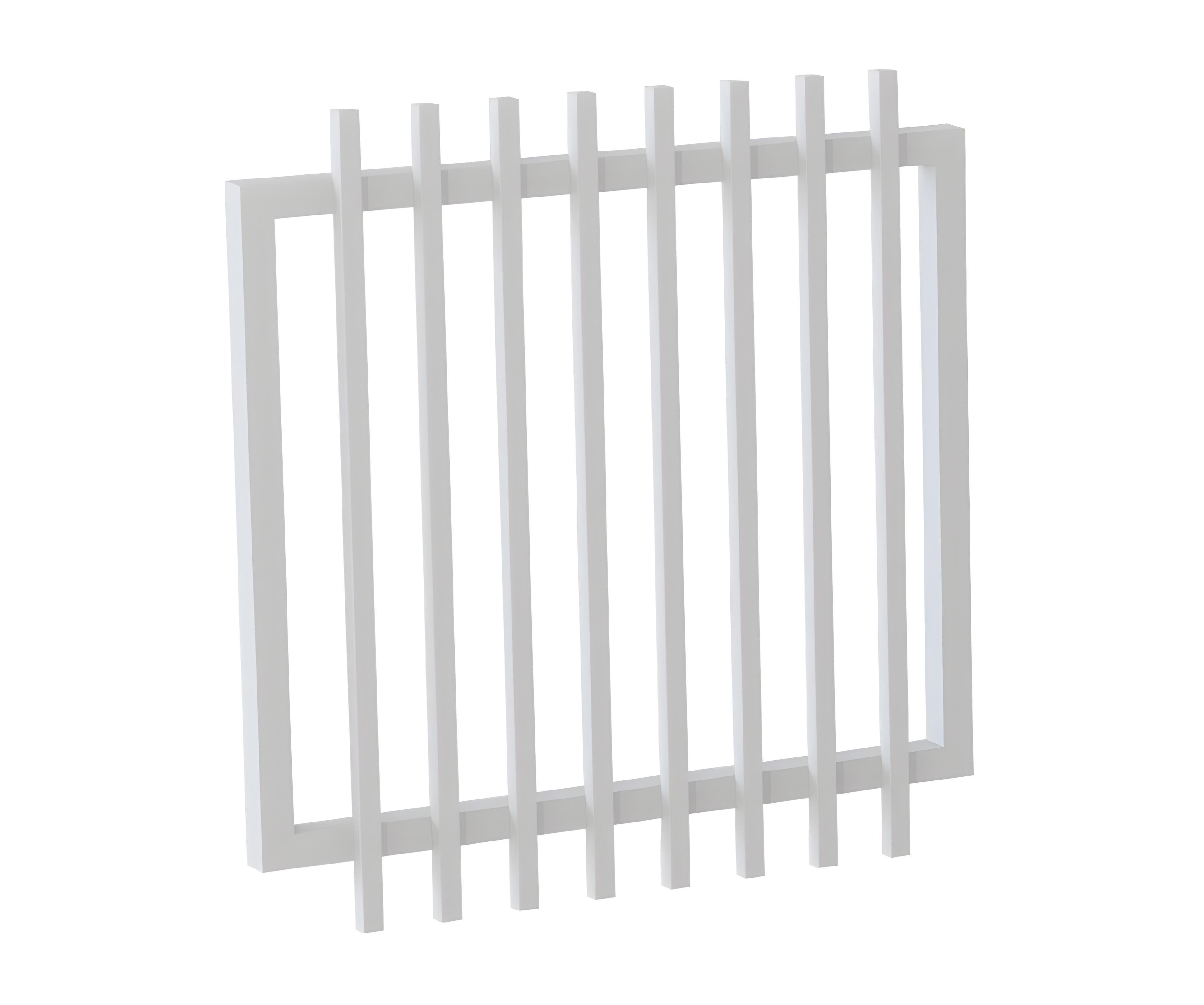

32 x 32mm Radiator Swing Gate – 90mm Gap | Aluminium Gate

Aluminium Batten Swing Gate (Radiator Style) – Custom Made

32 x 32mm battens | 90mm spacing | Custom widths up to 2400mm

Enhance your property with a custom aluminium batten swing gate, designed for a refined, modern architectural finish.

Featuring a sleek 32 x 32mm batten profile and balanced 90mm spacing, this gate offers the perfect combination of privacy, airflow, and visual openness—ideal for contemporary homes.

• ✔ Made to order
• ✔ Balanced privacy and airflow (90mm spacing)
• ✔ Lightweight yet strong aluminium design
• ✔ Low maintenance construction
• ✔ Custom widths up to 2400mm

Why Choose This Swing Gate?

Refined Modern Design

The slimmer 32 x 32mm battens create a clean, architectural look that suits modern builds and high-end finishes.

Balanced Privacy & Airflow

The 90mm spacing provides a modern, open feel while still maintaining practical privacy for residential applications.

Built for Strength & Longevity

Manufactured from 6063 T6 aluminium, this gate is corrosion-resistant and suitable for Australian coastal and inland environments.

Fully Custom Made

• Widths from 250mm to 2400mm
• Multiple height options
• Choice of batten sizes and spacing configurations

Versatile Applications

Perfect for pedestrian access, side gates, and entryways where a hinged solution is required.

Key Features

• Face-welded aluminium battens
• 30 design combinations (10 styles × 3 spacing options)
• Premium powder coated finish
• Rust-proof aluminium construction
• Low maintenance – no repainting required

Colour Options

Available in a wide range of powder coated finishes:

• Pearl White
• Surfmist
• Shale Grey
• Dune
• Silver Pearl
• Primrose
• Jasper
• Woodland Grey
• Ironstone
• Monument
• Satin Black
• Basalt

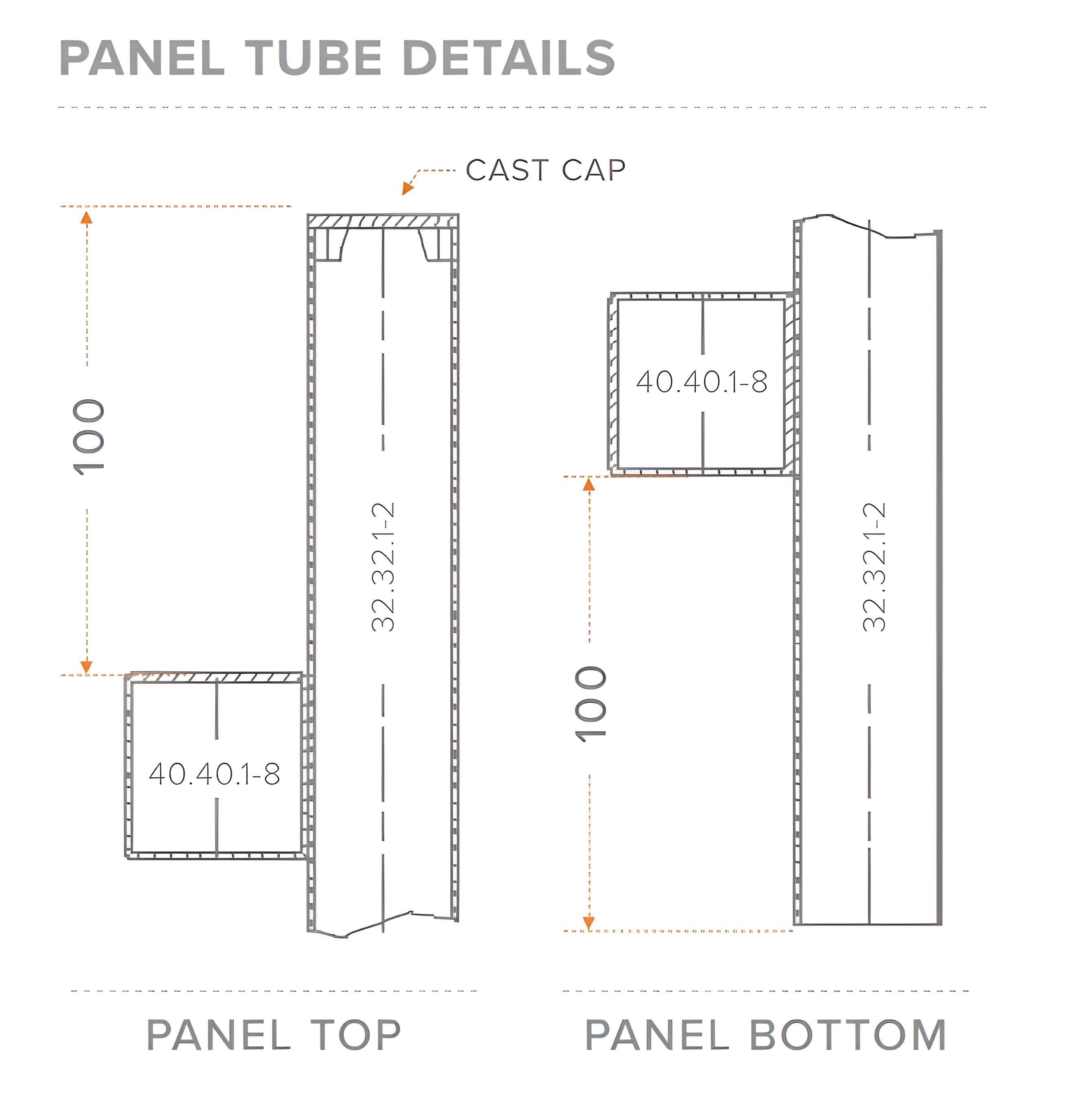

General Specifications

• 50 x 50 x 3.0mm frame (mitred corners)
• 32 x 32 x 1.2mm pickets
• Face welded onto rail

Product Specifications

• Material: Powder Coated Aluminium (6063 T6)
• Heights: 900mm, 1200mm, 1500mm, 1800mm, 2100mm, 2400mm
• Widths: 250mm – 2400mm
• Tubes: 32 x 32 x 1.2mm Screwflute SHS
• Edge: 2mm radius

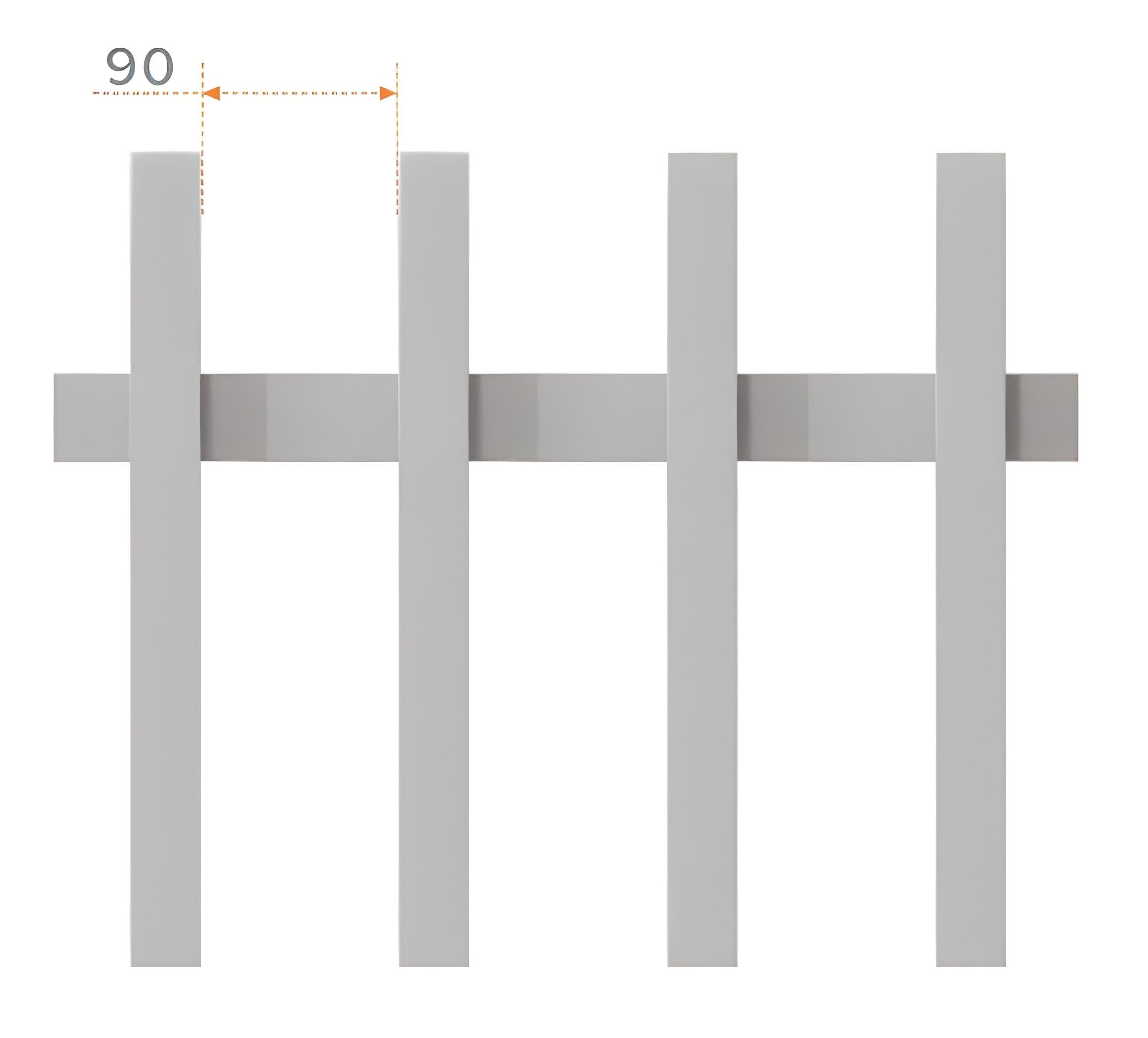

• Spacing: 90mm
• Weld: Face welded onto rail
• Caps: Cast caps (top only)
• Powder Coat: Interpon standard range
• Brackets: 40 x 40mm single lug (sold separately)

Applications

• Pedestrian access gates
• Side access gates
• Modern residential fencing systems
• Entry gates

Lead Time

Approx. 2–3 weeks (made to order)

FAQs

Can this swing gate be automated?

Yes, it can be paired with compatible swing gate automation systems.

What is the maximum width?

Up to 2400mm depending on configuration.

Are smaller battens better?

32 x 32mm battens provide a more refined and modern appearance compared to larger profiles.

Is aluminium suitable for outdoor use?

Yes, aluminium is rust-resistant and ideal for long-term outdoor applications.

Do you supply matching fencing?

Yes, matching panels, sliding gates, posts and accessories are available.

Need Help?

Send us your measurements or plans and we’ll recommend the perfect gate setup for you

The Batten Radiator Fencing Range is an easy-to-install pre-welded system with a wide range of extrusion and small, medium and large spacing options.

Face-Welded Extrusion Options

Extrusions are face-welded to horizontal rails, giving a contemporary 'radiator' look and creating an ever-changing privacy element when viewed from different angles.

Get the Look

Consisting of a unique range of panels, swing gates, sliding gates, posts & accessories, the Radiator Fencing range is the perfect choice in architectural design & functionality.

Coat to Order

On Trend Powdercoating Colours

The Aluminium Batten Radiator Fencing is powder coated to order and is available in a range of Interon Powder Coating colours. The best colour for your aluminium fencing will depend on your home's colour scheme and your preferences. Below are some of our most popular on trend Powder Coating colours:

General Specifications:

• 50 x 50 x 3.0mm Frame (Mitred Corners)
• 32 x 32 x 1.2mm Pickets
• Face Welded onto Rail

Product Specifications:

Lead Time: Approx. 2–3 weeks
