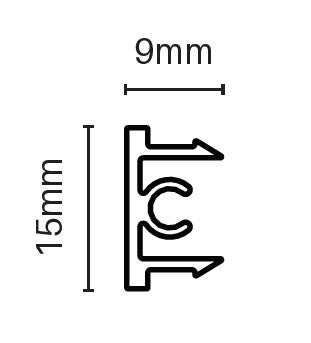

Aluminium BATTEN EXTRUSIONS - 15mm x 9mm clip
Aluminium BATTEN EXTRUSIONS - 15mm x 9mm clip
Aluminium BATTEN EXTRUSIONS - 15mm x 9mm clip

Aluminium BATTEN EXTRUSIONS - 15mm x 9mm clip

  • Sale
  • Regular price $15.00
Tax included.


Clips into 65 x 17 Batten

• PP 100 / AP 77
• Alloy 6063-T6

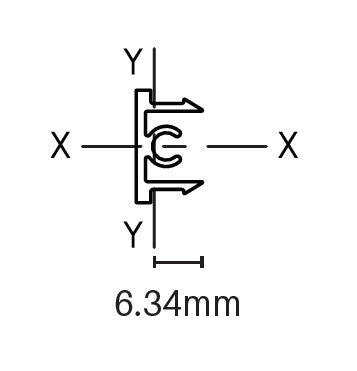

• lxx = 1.03 x 10E3 mmE4
• lyy = 0.33 x 10E3 mmE4
• 1x Ø3.05mm screw flute

6100mm long



*For affixing clip to concrete, consider tapper+ fastener
(1-1/4” x 3/16”) or equivalent syle of concrete fastening screw.
It is important that head of screw does not protrude past clip
edge. If it protrudes past, it will interfere with front of batten
snapping on



Available for local delivery or collection only.
