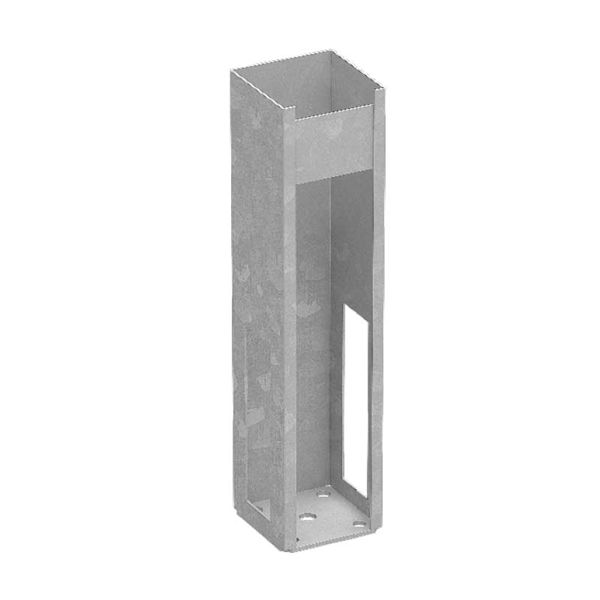

• Internal fitting base plate suits 1 way, 2 way and 90 degree posts. Not suitable for use with 1 way ‘gate’ post

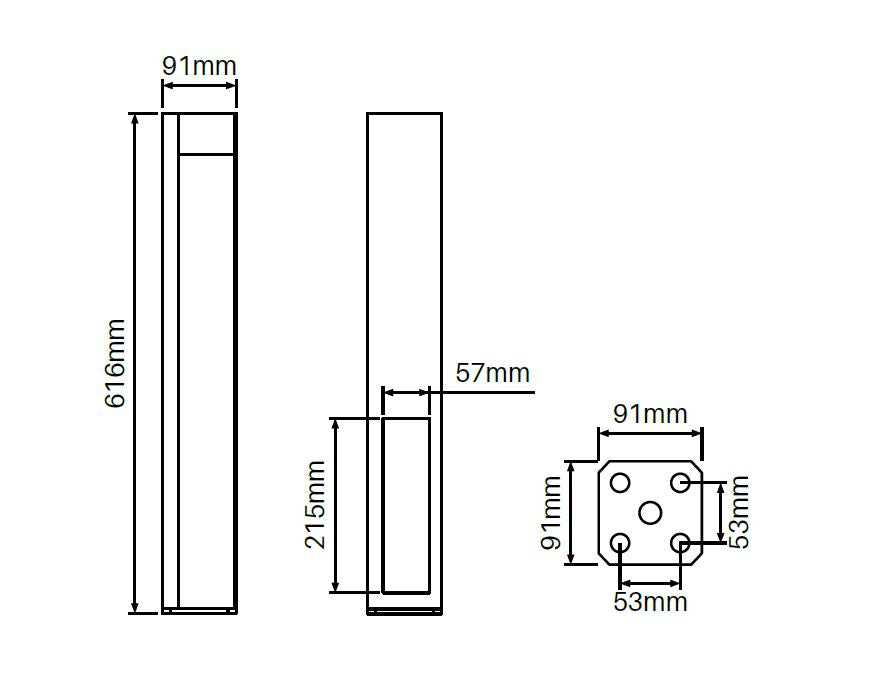

• 6mm thick base plate with 2mm thick vertical walls
• Cold-galvanized steel provides strong corrosion resistance
• 4 x fixing holes in base plate
• Post sleeves over base plate and fixes to internal base plate with tek screws. Use 2 part domical cover to hide screw fixings
• Base plate system not suitable for use where wind load considerations required
