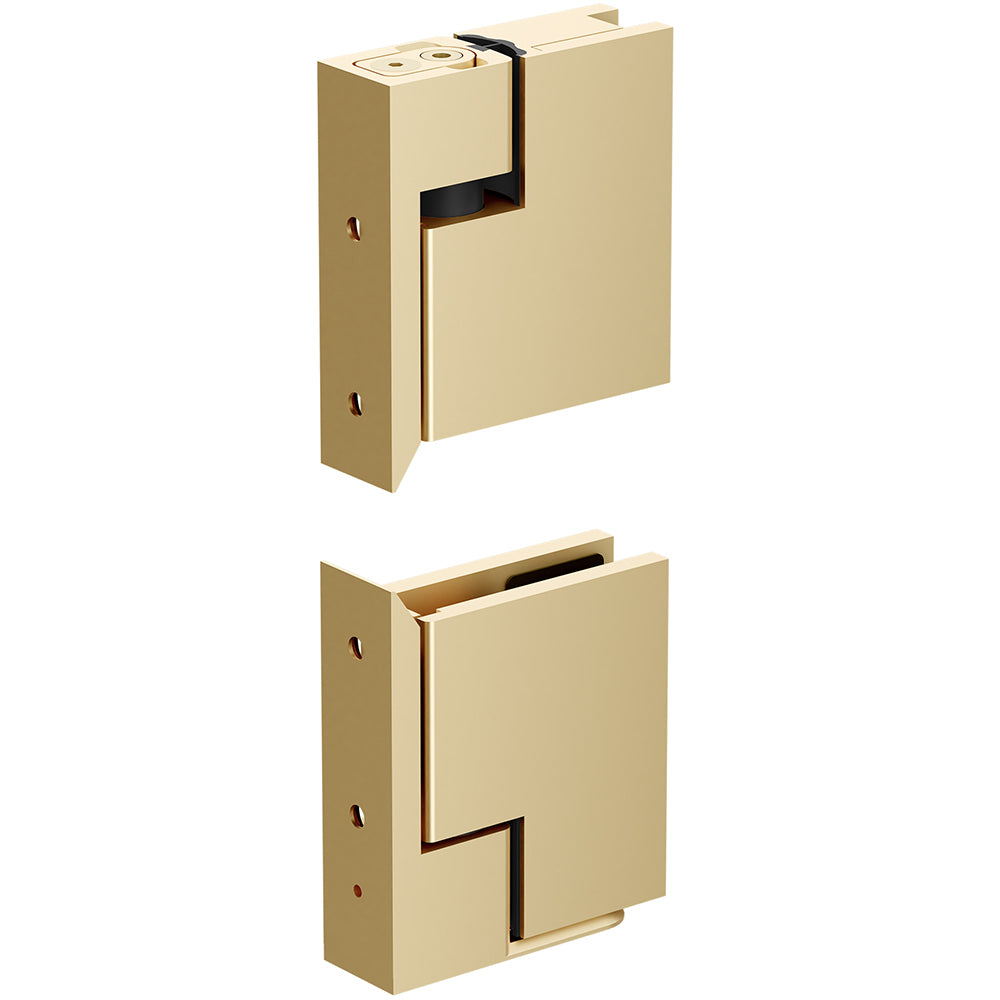

Satin Brass Zero Shower Screen Hinge Set

The Zero Shower Hinge Set

Introducing the revolutionary Zero Shower Collection, a testament to unwavering commitment
to innovation. This ground-breaking series not only embodies dedication to pushing the boundaries of design and technology with its unprecedented performance, it also redefines the very essence of
shower installations with its unparalleled elegance and cutting-edge highly versatile functionality.
The meticulously-crafted Zero Shower Collection features the Zero Shower Hinge Set (patent
pending) and Clamps (patent pending). When combined with the new Premium Handles and Towel Bars, these elements create the first truly cohesive solution for contemporary shower enclosures.
Available finishes: Brushed Bronze, Brushed Nickel, Polished Chrome, Matte Black, and Satin Brass

The strength of the Zero Hinge surpasses all others, capable of handling glass doors more than 50-percent heavier and 15-percent wider. A glazier can complete the entire installation, (including clamps), from outside of the shower. Installation is substantially more efficient as the hinges are mounted to the glass in the prone position and then attached to pre-installed wall mounts.

• Door width up to 1140mm
• Door weight up to 75.5kg
• Suits 10 and 12mm glass
• Self-centering within +/-60 Degrees of the closed position
• Lifts the door by 6mm when opening, (rising hinge)

Versatile Installation Options

The Zero Hinge Set offers a sleek, next-generation solution for shower installations, consolidating more than 15 standard hinge configurations. Accessory kits are available to transform this innovative hinge to support other popular shower enclosure applications and mounting angles: 90 Degrees , 135 Degrees , and 180 Degrees . The accessory kits consist of adapters that are installed into a pair of identical Zero Hinges that are mounted back-to-back, fixating the mounting angle of the glass panel.

• Wall mount or glass-to-glass applications
• Wall or floor mounting (acting as a pivoting hinge)
• Integrated clamp-function for floor installations reduces additional hardware for 90 Degrees , 135 Degrees , or 180 Degrees
• Order accessory kits separately

Note:
For 135 Degrees installations, use the glass cut-out specified in the Technical Documentation. For full-height installations, ensure a minimum clearance of 56 mm from the top hinge and allow an additional 3 - 4mm
space below the glass for the fully compressed sweep.
