Forge Hydraulic Patch Closer Hold Open Brushed Brass
$384.00
Description
  • Bottom Pivot Hydraulic Patch Fitting
  • Hydraulic Controlled Soft Closing
  • Two stage adjustable control valve
  • 316 Grade Stainless Steel Cover Plates
  • Suitable for 10 or 12mm glass
  • Maximum door weight 100kg
  • Maximum door width 1000mm
  • Brushed Brass

Included components

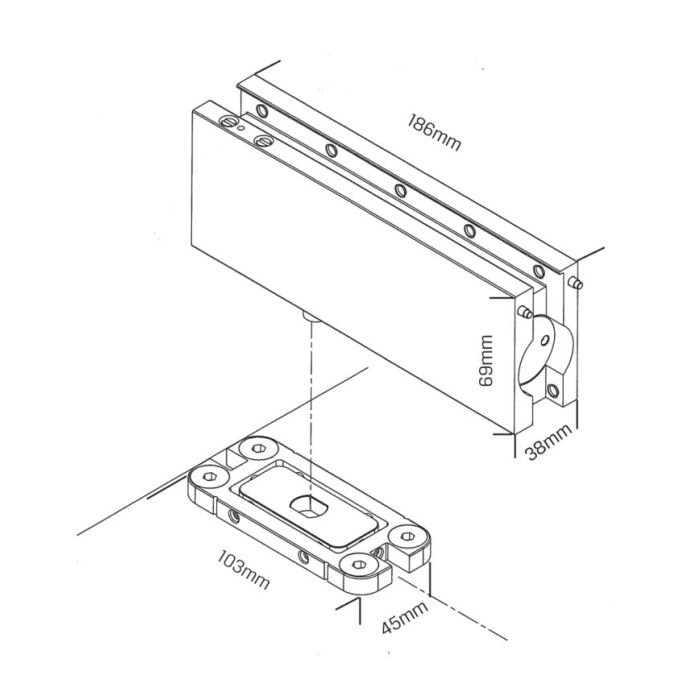

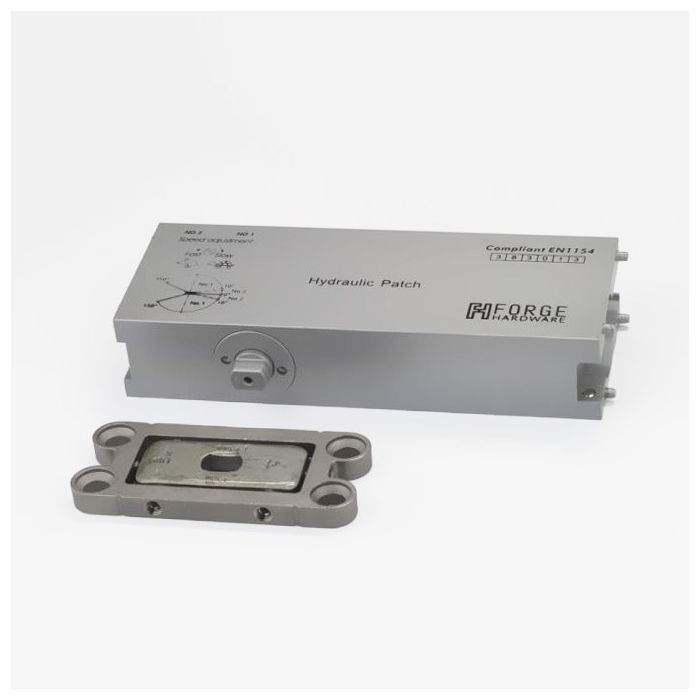

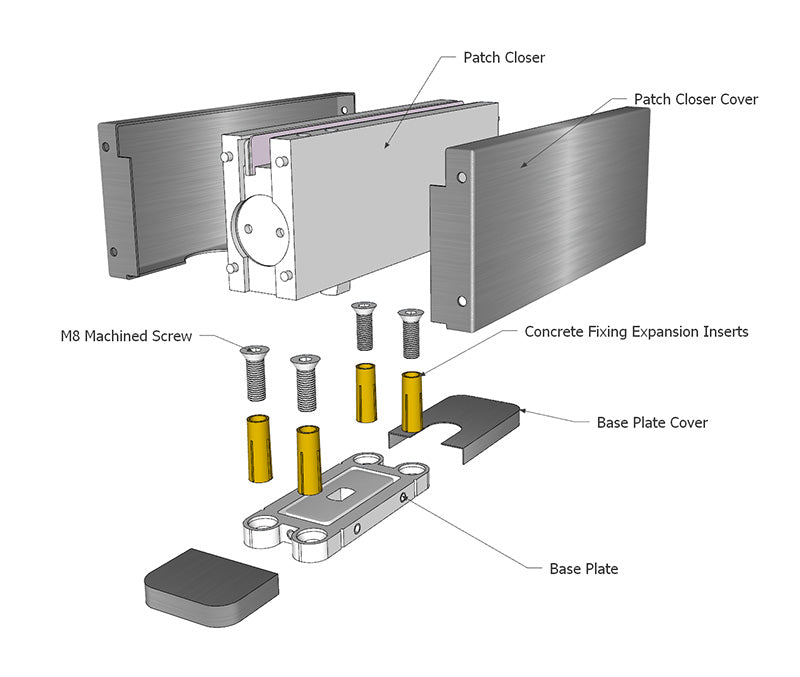

  • Hydraulic closer body for 10 mm or 12 mm glass.
  • Base mounting plate, a set of closer covers and a set of base covers.
  • Fixings for a concrete floor.

Installation

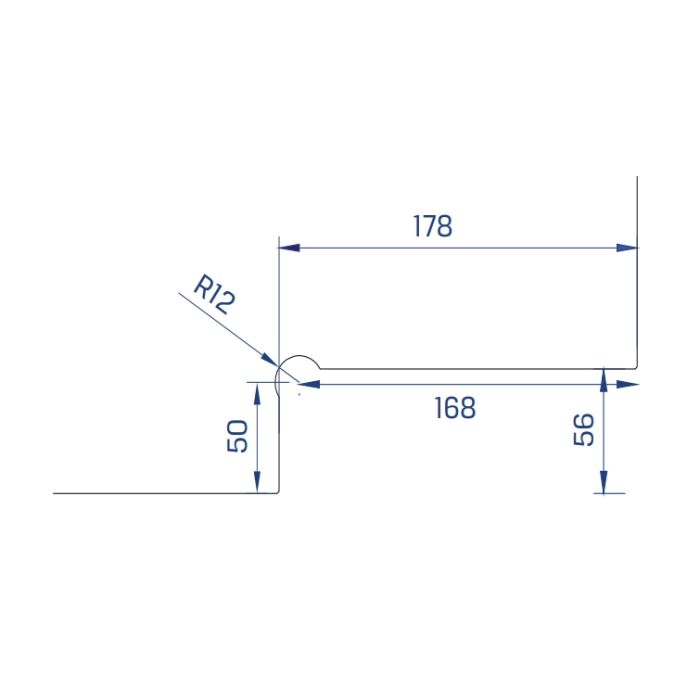

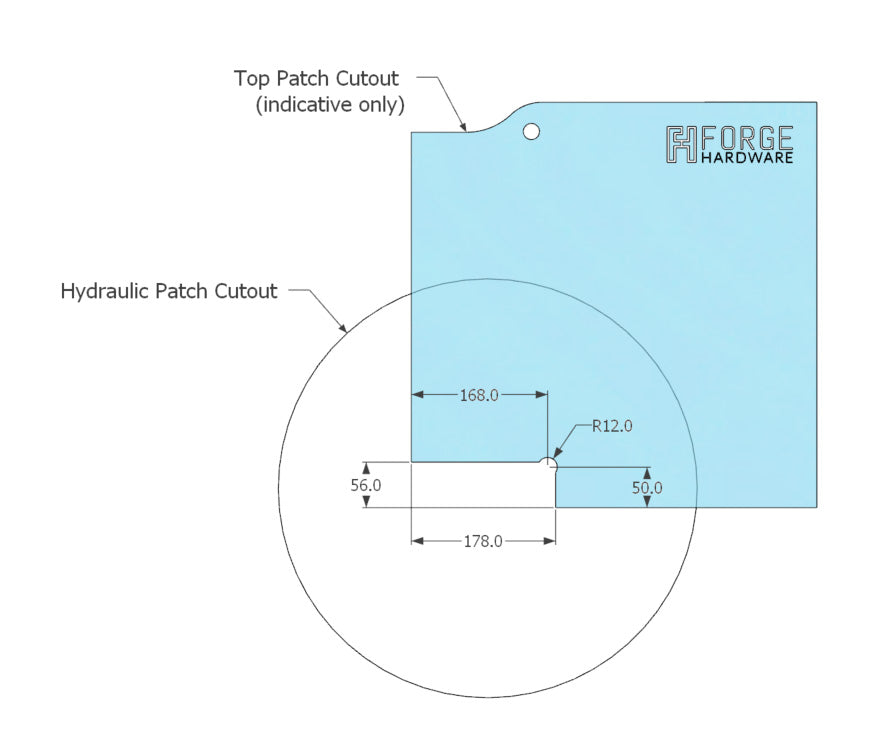

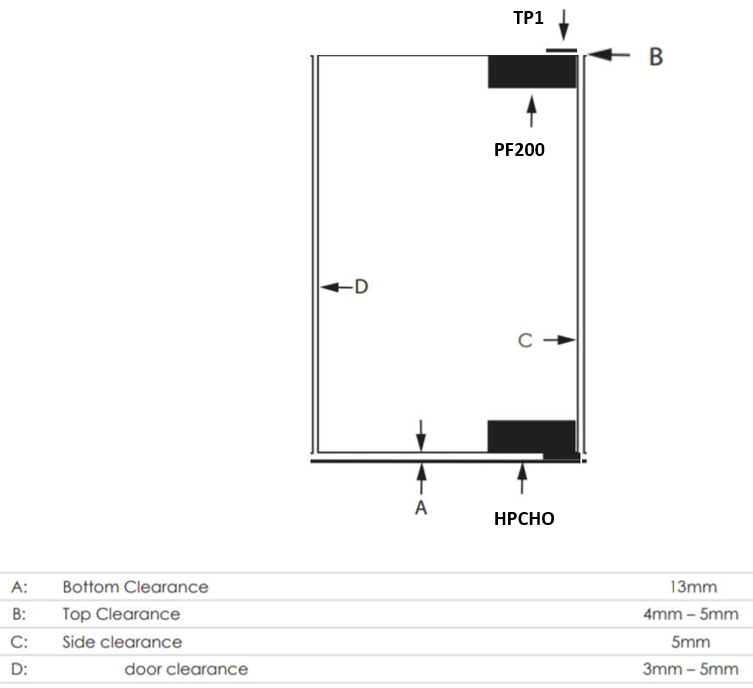

A square corner cut-out is required. Suitable top patch fittings allow floor-to-ceiling, side-mounted, highlight-panel or transom-panel arrangements. Refer to the supplier diagrams for clearances and deductions.

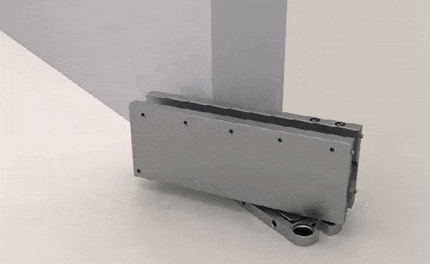

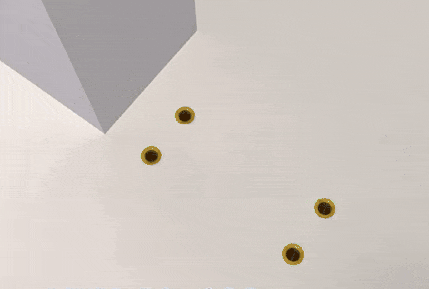

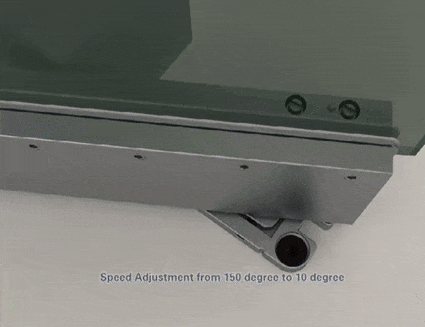

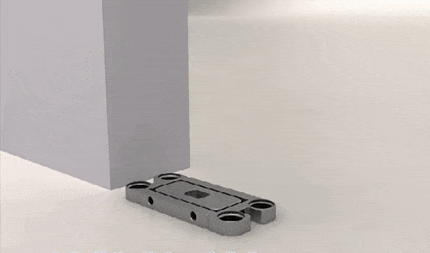

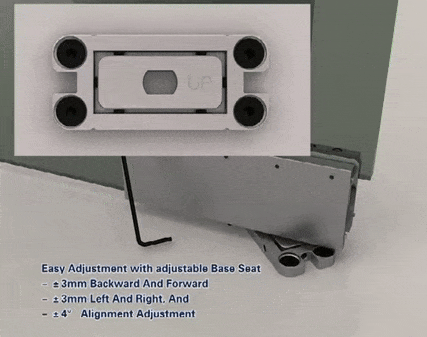

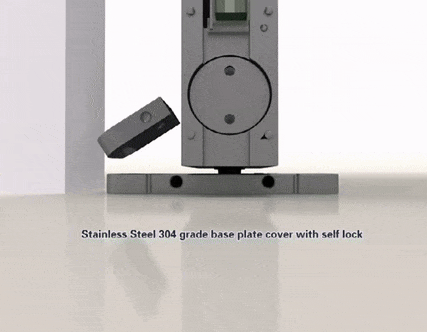

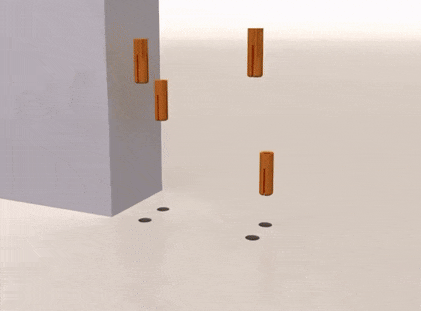

Installation sequence: drill the base holes, insert concrete fixings, secure the base plate, position the closer, install the glass, adjust both closing-speed stages, align the door and fit the covers.
