HEAVY DUTY Concealed base plate
HEAVY DUTY Concealed base plate
HEAVY DUTY Concealed base plate
HEAVY DUTY Concealed base plate

HEAVY DUTY Concealed base plate

Stocked at:

Brisbane (Virginia)

Gold Coast (Molendinar)

Melbourne (Derrimut or Dandenong South

Newcastle (Cardiff)

Adelaide (Kilburn)

Perth (Jandakot)

CLICK & COLLECT
Please wait to receive your collection reference and address before collecting, this is usually sent by text message - If you need an urgent pick-up please message us via the online chat. (Mon-Sat, 8-5) otherwise pick up can usually be the next business day. Collection times are strictly between 7.30am and 3pm weekdays only. Please check the "stocked at" location on the product page itself.
  • Sale
  • $55.00
Tax included.

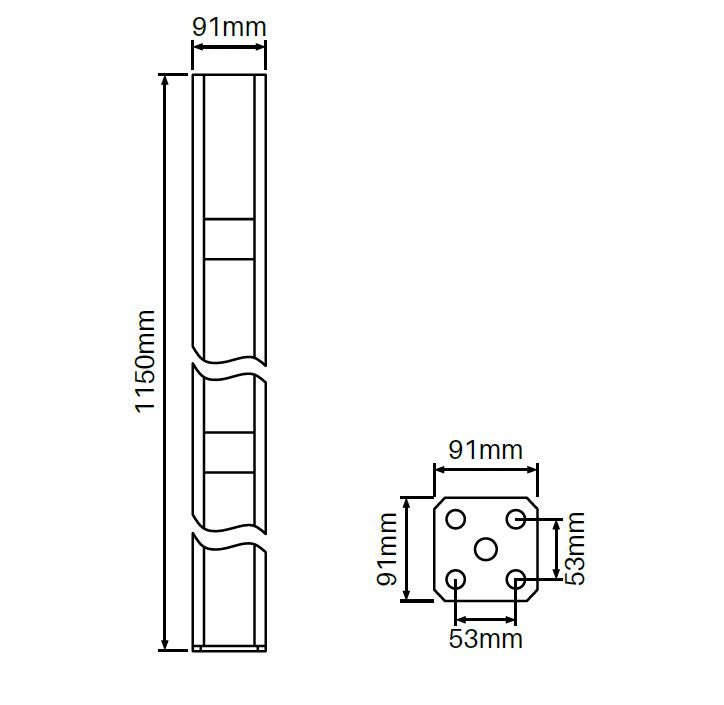

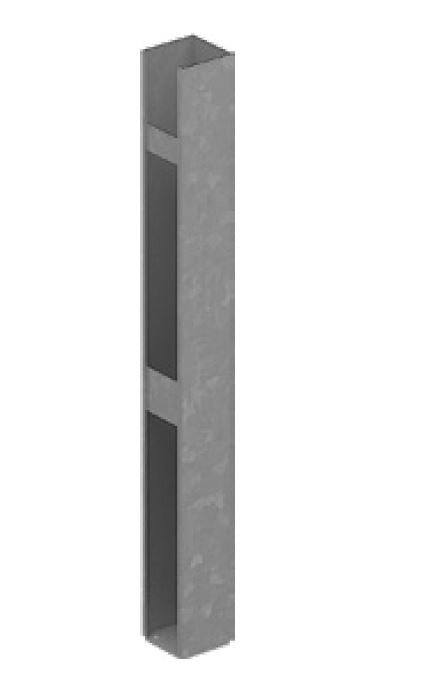

• Internal fitting base plate suits 1 way post.

• Enables base plate fitting of 1 way post for use as a hinge and/or latch post

• 6mm thick base plate with 2mm thick vertical walls.

• 1150mm high vertical walls provide post rigidity also, sturdy substrate for fixing of hinges and/or latch

• Cold-galvanized steel provides strong corrosion resistance

• 4 x fixing holes in base plate

• Post sleeves over base plate and fixes to internal base plate with tek screws. Use 2 part domical cover to hide screw fixings

• Base plate system not suitable for use where wind load considerations required
