New Improved PIK 90° Curved Corner Panels – Arriving Early October!
Perfect Finish for Premium Pool & Boundary Fencing

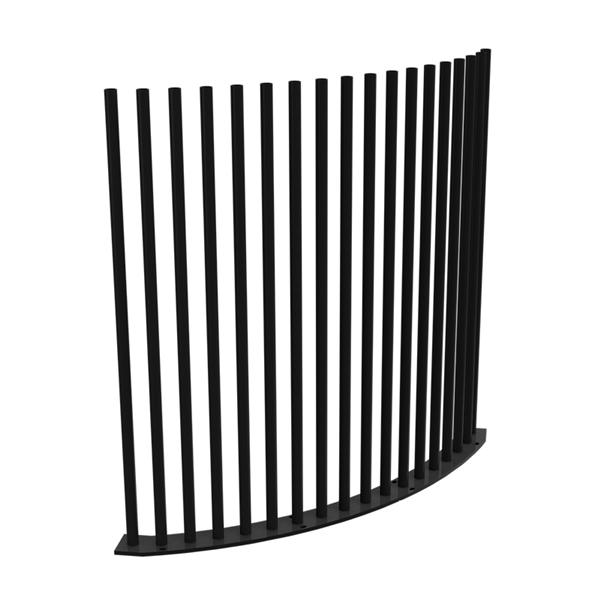

Create a smooth, stylish corner transition for your fencing with our PIK 90° Curved Corner Panel – 1311mm Radius.
Designed for durability, safety, and effortless integration with our straight PIK panels, this curved section ensures a professional, high-end finish.
Why Choose the PIK Curved Corner Panel?
-
Seamless Corner Design – 90° curve perfectly matches straight PIK panels for a clean, continuous look.
-
Heavy-Duty Strength – 32mm pickets with 3mm steel wall thickness, welded to a robust plinth.
-
Maximum Corrosion Resistance – Galvanized steel + epoxy base coat + satin black powder coat = triple-layer protection.
-
Complies with Australian Standards – Fully pool safety compliant to AS1926.1 (Form 15 and test reports available).
-
Low-Maintenance & Long-Lasting – Backed by a 7-year limited warranty.

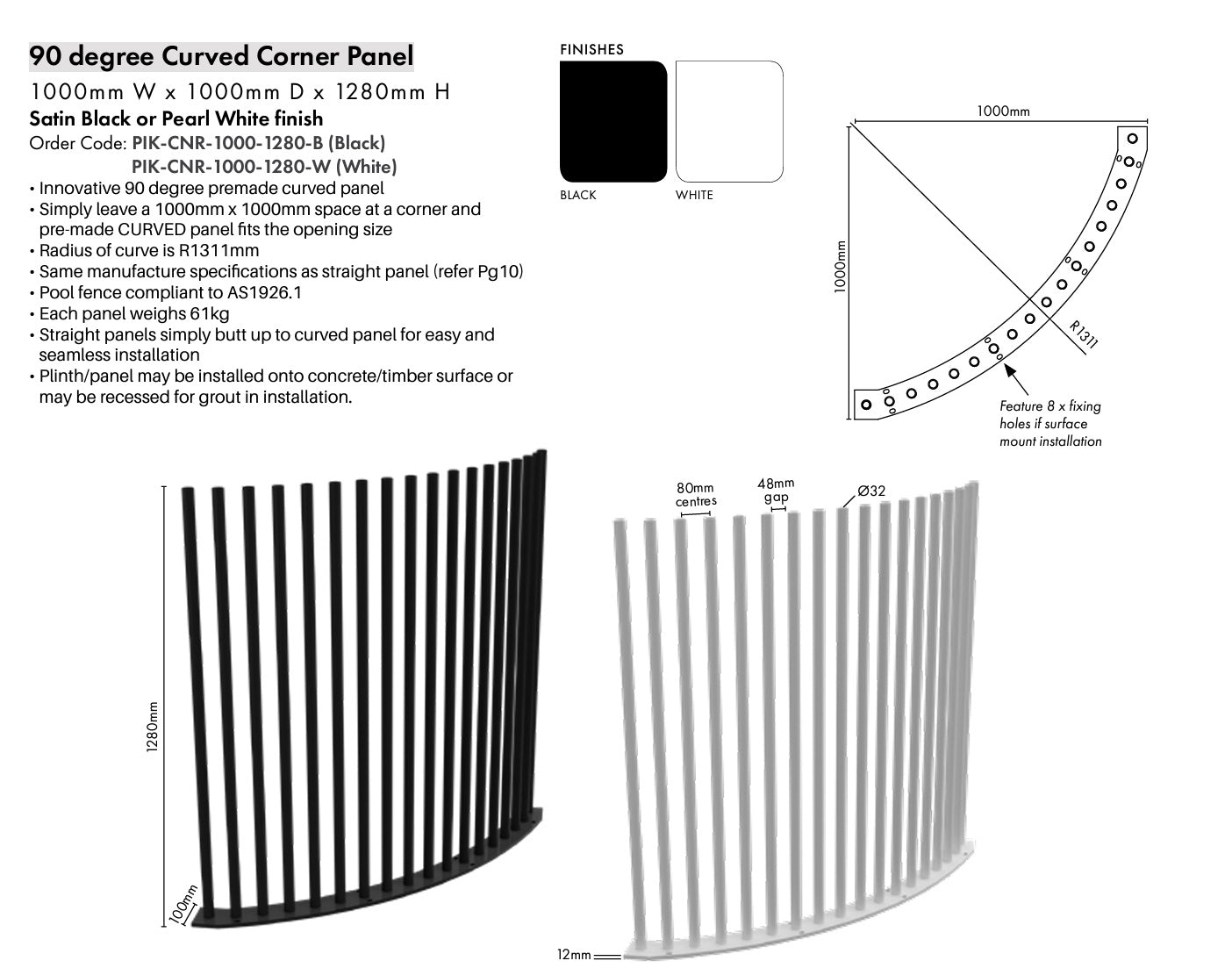

Product Specifications
-
Radius: 1311mm (90° curve)
-

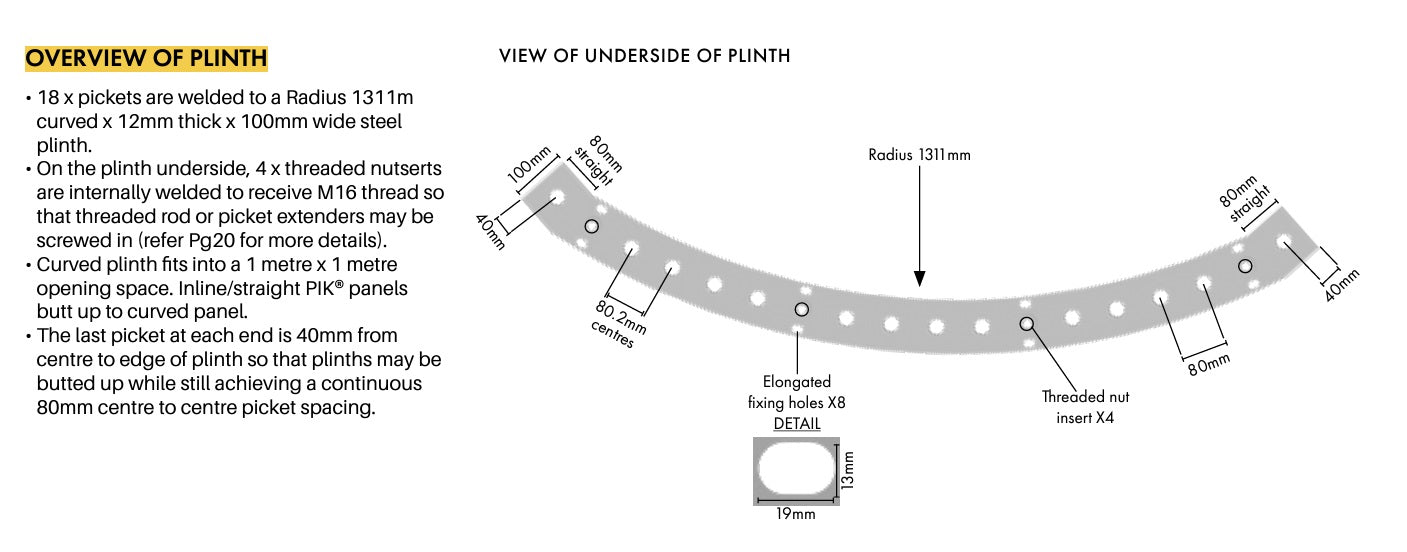

Plinth Size: 100mm wide x 12mm thick steel
-
Finish: Satin Black powder coat (GN150A)
-
Weight: 61kg per panel
-

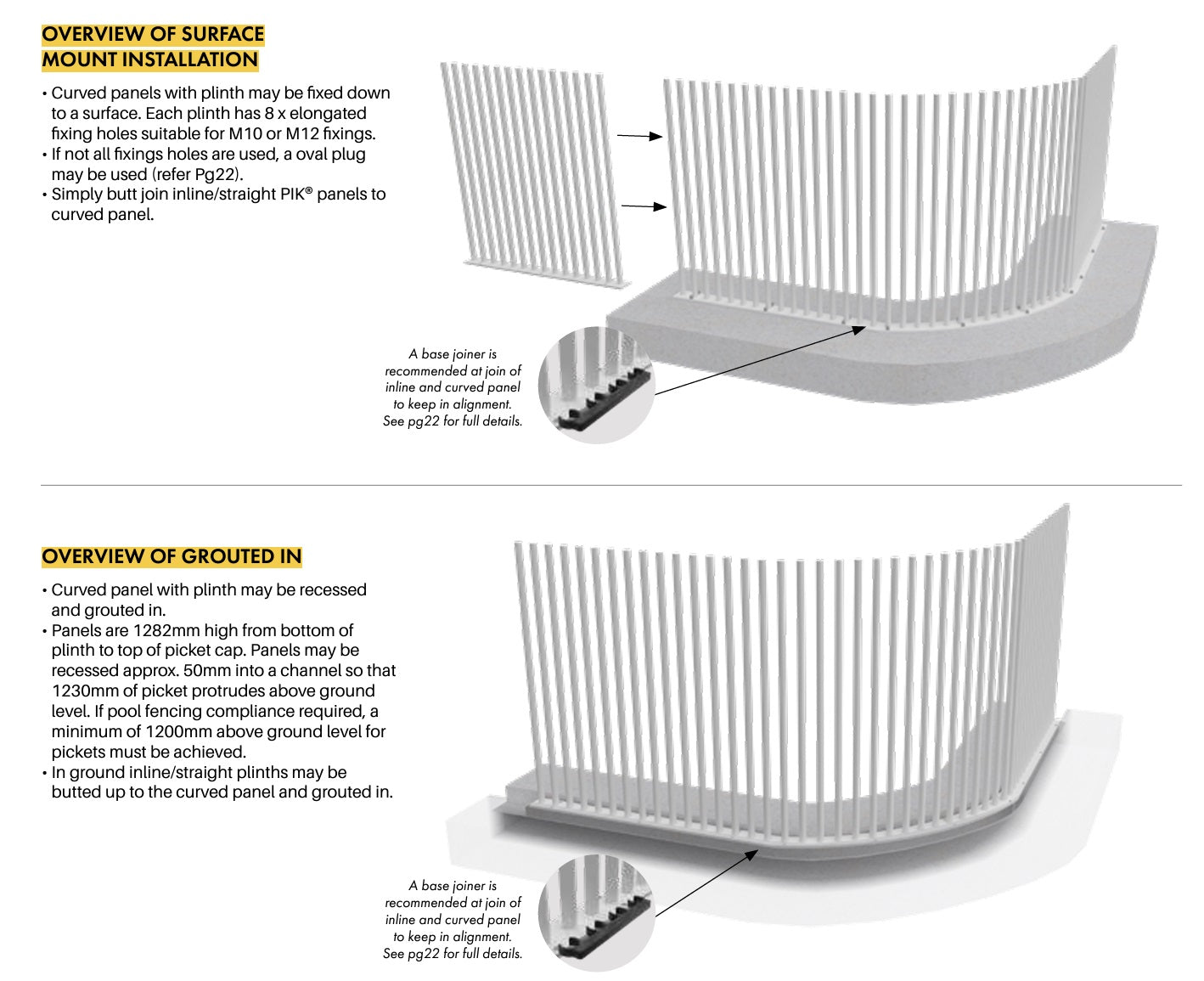

Installation: Fix to concrete, timber, or grout-in applications
-
Protection: Each panel packed with cardboard end caps and pickets individually plastic-wrapped
Installation Notes
-
Designed to butt seamlessly against straight PIK panels – no special joiners required.
-
PVC base plate cover (installed during manufacturing) must remain in place during installation.
-
Avoid harsh chemicals like acid wash around newly installed panels to preserve the finish.
Delivery & Collection
The PIK panels can only be delivered on a crane truck to the below locations, contact us before ordering to get a quote for the crane truck price or we will send an invoice for the crane truck once ordered. Note delivery zones below.
If collecting,
due to the weight of these panels, we can only place on a pallet and forklift on to your vehicle. We will send an invoice for a pallet if one or more are ordered. If unsure please contact us for a quote at info@glasshouseau.com
Steel Pallet / Crate
size is 1450 x 1270
-
Sunshine Coast (up to Noosa)
-
Brisbane Metro
-
Gold Coast
-
Northern Rivers (north of Ballina)
-
Tweed
-
Melbourne Metro
-
Adelaide Metro
-
Cardiff Metro
-
Perth Metro
If you’re outside these zones – contact us for a custom delivery quote.
📧 For quotes or questions: support@glasshouseau.com
💡 Complete your fencing project with a perfect curved corner – secure your September stock now before it sells out!
