Satin Black powder coat

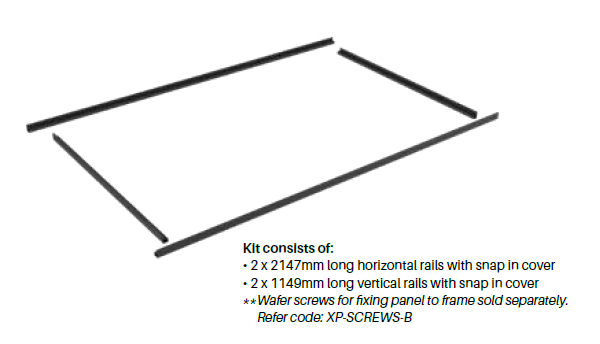

• Kit frames perf sheet on all 4 sides.

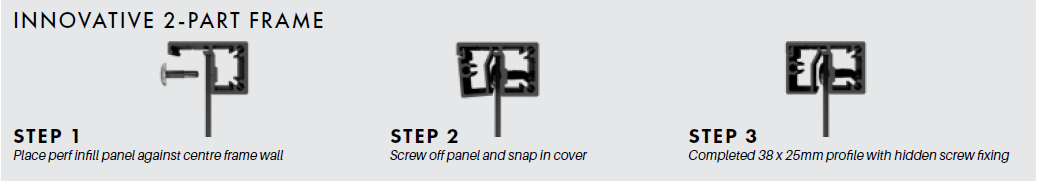

• 2 part frame design enables hidden screw fixing of perf sheet to
frame. Panel fixing screws are covered by snap in cover. Finished
frame profile is 38x25mm which suits standard fencing brackets.
• Suits framing of both full perf and deco perf infill panels
• Frame kit enables installing 2 ways : refer ‘fabrication overview’
for detailed information
1) With shrouds/brackets: when assembled with perf sheets,
standard panel is 1200mm high and suits a ‘daylight opening’
width between posts of 2150mm.
2) With U Channel fixing: when assembled with perf sheets,
standard panel is 1200mm high and suits a ‘daylight opening’
width of 2012mm. **(U Channels sold separately)
• Frame kit is easily height and width adjustable. Simply cut to size.
Free collection from Gold Coast, Brisbane, Adelaide, Melbourne, Cardiff or Perth
Delivery is to the below areas only,
Sunshine Coast, (as far north as Noosa)
Brisbane metro
Gold Coast
Northern Rivers, (north of Ballina)
Tweed
Melbourne metro
Adelaide metro
Cardiff metro,
Perth metro
If outside of these areas please ask.
