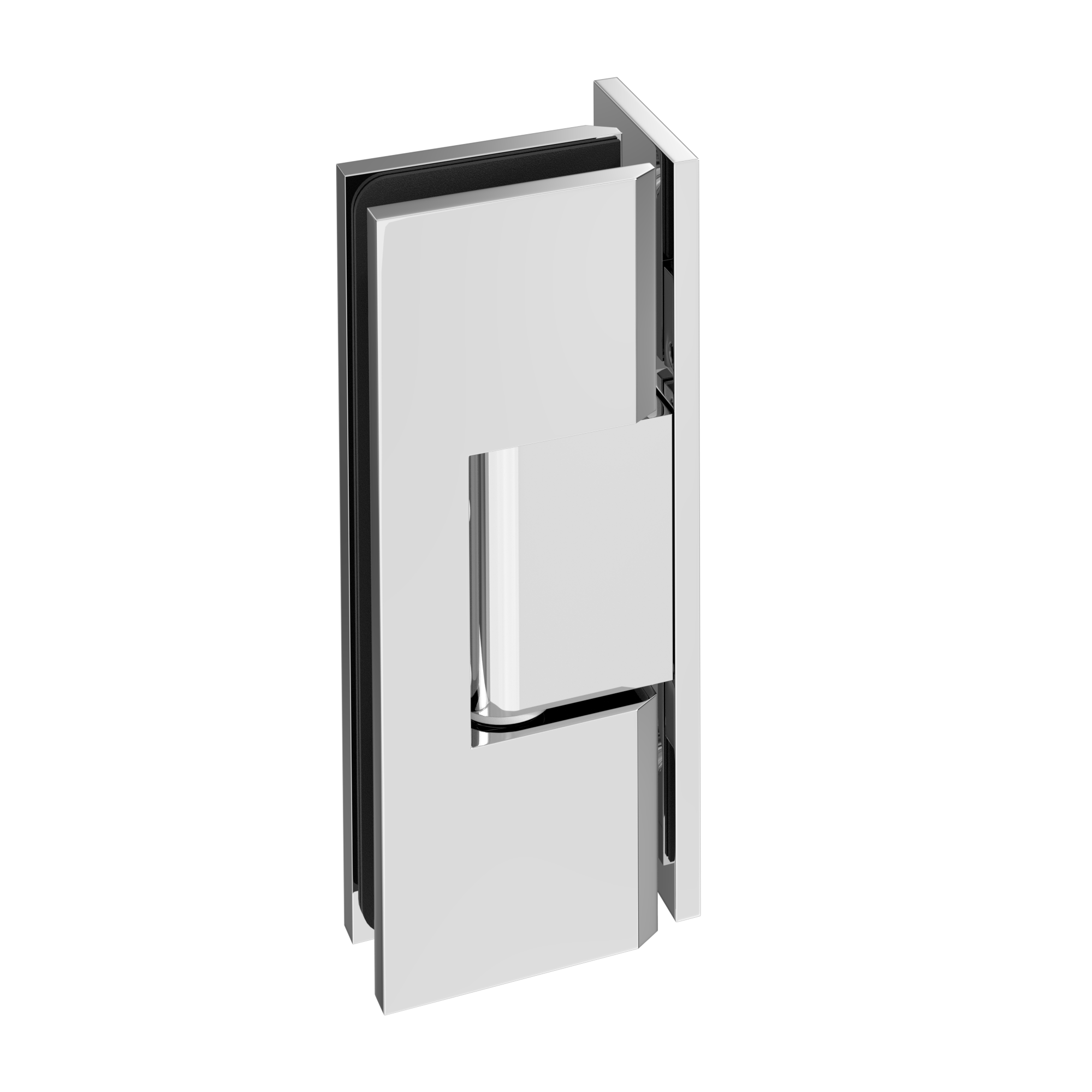

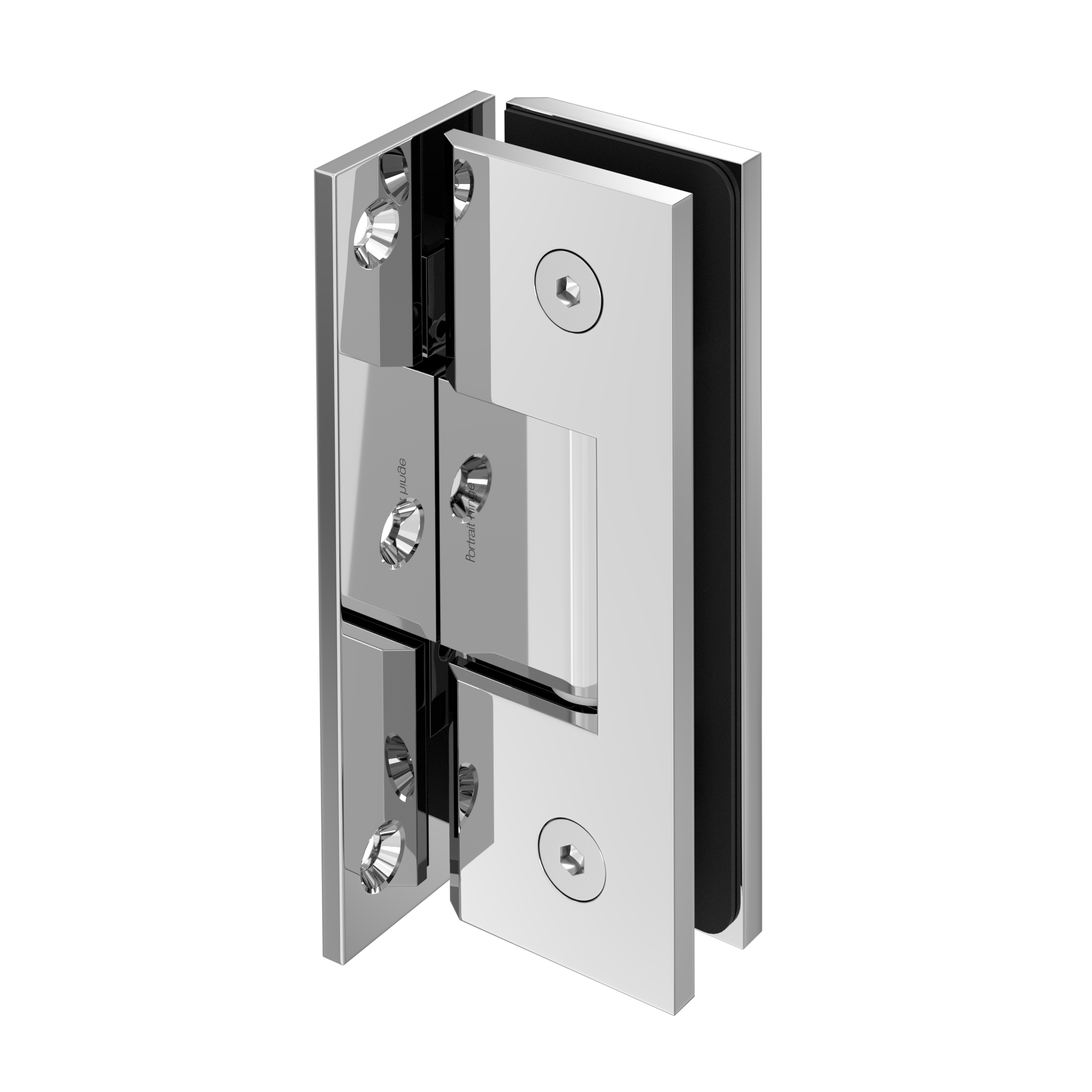

Portrait Glass to Wall Shower Screen Hinge to Suit 10mm Glass - Chrome

Stock arriving late March 2025

Portrait Hinge SJ1L - Glass to Wall - to suit 10mm glass

*Sold Individually*

The Portrait Hinge is the worlds thinnest frameless shower hinge. Stop being part of the landscape, get Portrait.

• Dual action hinge, opens in and out.
• Self closes from approximately 25 Degrees .
• Suits 10mm glass only.
• 20% thinner, 14% stronger than traditional hinges
• Backed by Portrait Hinge 3 year warranty
• Australian designed and tested to 50,000 cycles
• Made from high quality solid brass, available in 4 off the shelf colours

Dual Spring, Dual Action hinge, Self closing from 25 Degrees
Thicker 5.5mm hinge plate will not bend under tightening like other hinges
Suitable for 10mm glass only
Max 40kg door (2 hinges) 55kg door (3 hinges), Max door width 800mm

TECH SPECS

2 Hinges per door:
MAX door width: 800mm
MAX door weight: 40kg
(eg: 2100 x 760mm door)

3 Hinges per door:
3 Hinges per door:
MAX door width: 800mm
MAX door weight: 55kg
(eg: 2700 x 800mm door)
