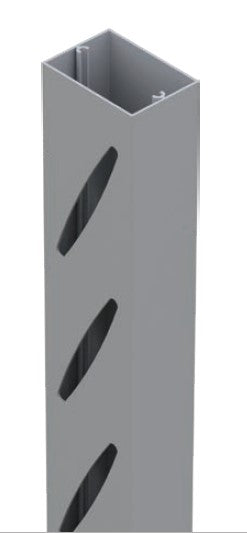

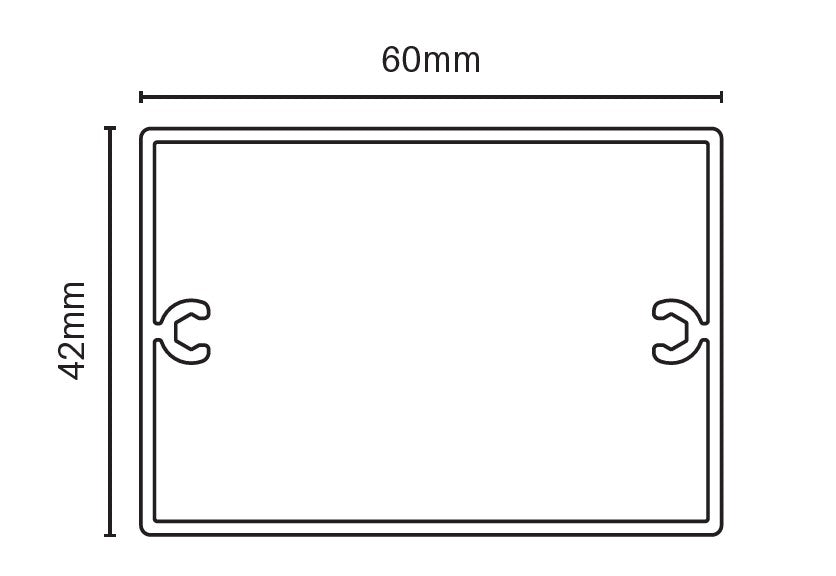

Slotted mid-rail 60mm x 42mm NIL SPACING 5800MM LONG

• PP 203 / AP 203• Alloy 6063-T5 / Mill finish• 5800mm long with 150x pre-slotted holes... Read More
$132.00
$132.00
Subtotal: $132.00

Pickup available at

Brisbane (Virginia)

Gold Coast (Molendinar)

Melbourne (Derrimut or Dandenong South)

Newcastle (Cardiff)

Adelaide (Kilburn)

Perth (Jandakot)

DELIVERY AND PICK UP INFORMATION

20 depots across Australia are now fully operational.

Check individual listings for which products are stocked in which locations.

Slotted mid-rail 60mm x 42mm NIL SPACING 5800MM LONG

Slotted mid-rail 60mm x 42mm NIL SPACING 5800MM LONG

$132.00

Slotted mid-rail 60mm x 42mm NIL SPACING 5800MM LONG

$132.00

• PP 203 / AP 203
• Alloy 6063-T5 / Mill finish
• 5800mm long with 150x pre-slotted holes (both sides) at 30°
• 2x Ø3.7mm screw flutes

Use on spans wider than 1500mm

1 piece midrail (slotted on both sides). Slide midrail along louvre blades to desired position. Assemble with top/bottom frame to create a fully framed louvre panel.
Weld/rivet louvre blades to midrail. Fully assemble panel in mill finish and then powder coat.

WELD/RIVETING REQUIRED



Available for local delivery or collection only

Stocked in Brisbane but can transfer to the below depots.

Gold Coast - Molendinar

Perth -  Jandakot

Melbourne, Derrimut and Dandong South

Adelaide - Kilburn

Newcastle - Cardiff
