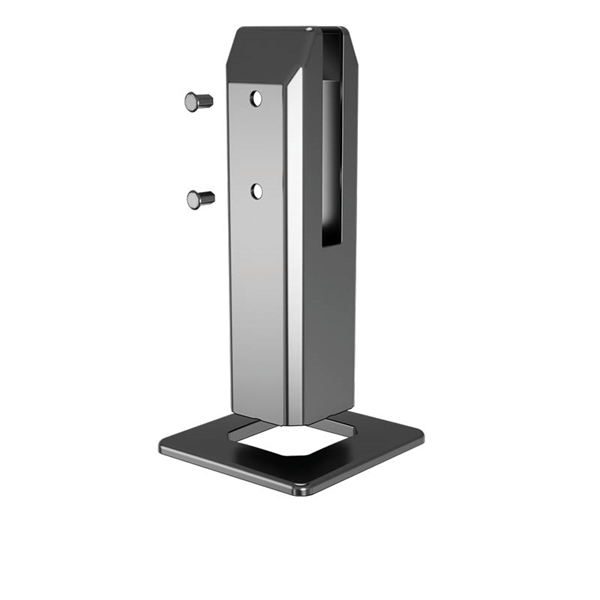

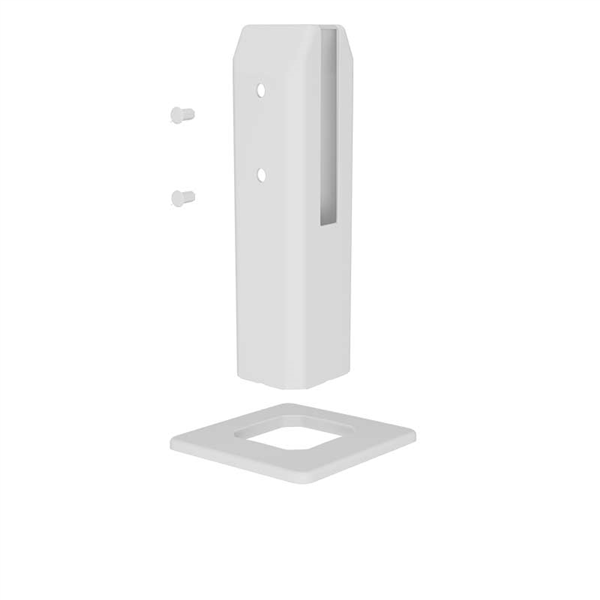

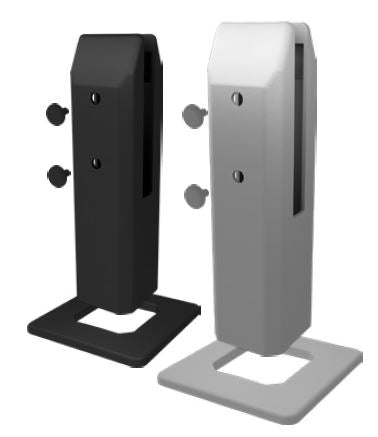

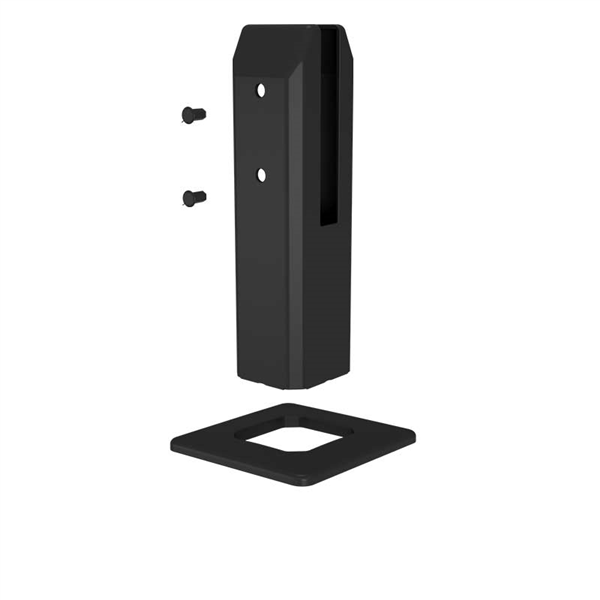

Spigot insulator for Core Drill Madrid Spigots

1x SPIGOT INSULATOR
1x DRESS RING
2x FRICTION SCREW COVERS

• Made from ASA thermoplastic – excellent weather & chemical resistance and high impact strength

• Non-conductive material

• Includes 1x dress ring

• Also includes 2x caps which fit into friction grub screw holes to reduce any chance of spigot insulator lifting

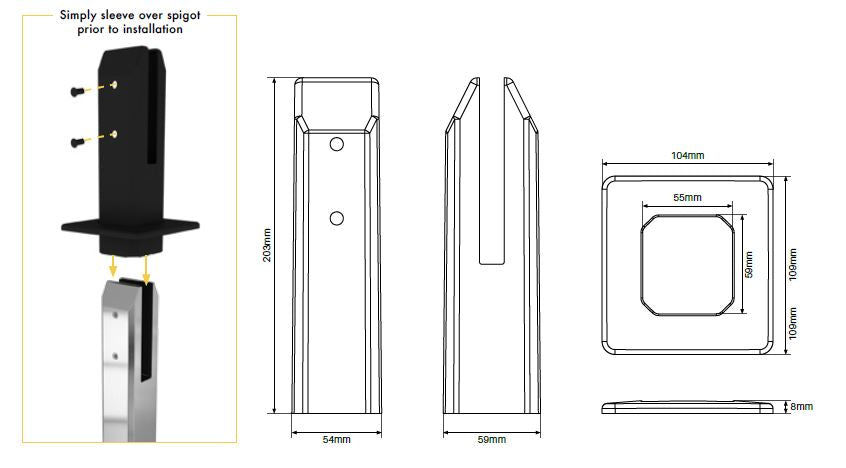

• Simply sleeve over Madrid stainless steel core drill spigot prior to install. Then install glass with spigot as per normal

• Can be retro-fitted to existing core drill Madrid spigots – carefully cut off excess base of spigot insulator to suit required insulator height

• Suitable for use with Madrid core drill spigots (MAD-S or POOLMAD-S) will not fit Madrid base plated spigots or top fix spigots

• Specially designed top section prevents chance of pulling insulating cover away from spigot

• Sold as single unit (Spigot insulator, dress ring & 2x caps)
