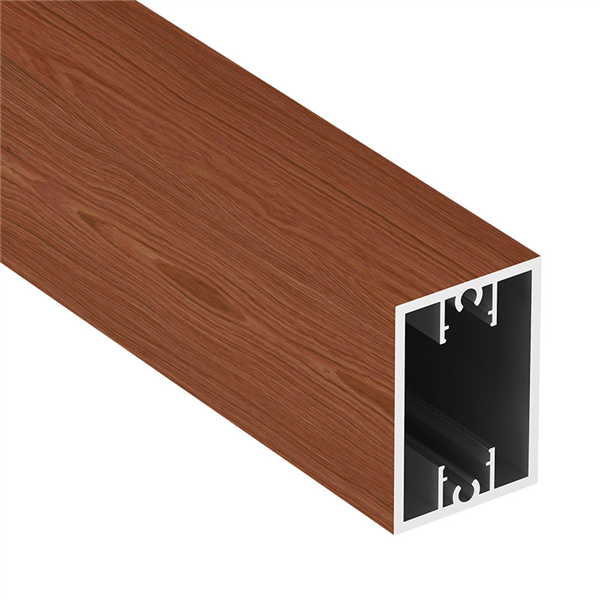

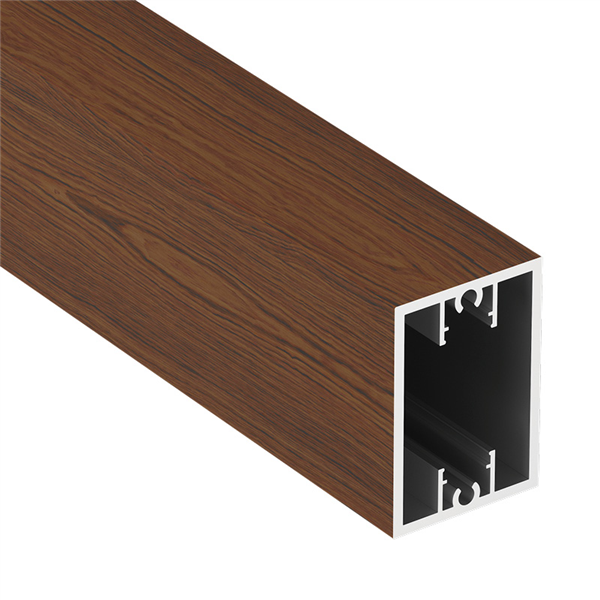

Alumawood Heavy duty top/bottom rail 5800mm

TECH SPECS • PP 219 / AP 219 • Alloy 6063-T5 / 5800mm long for WRC &... Read More
$241.86
$241.86
Finish: Kwila
Subtotal: $241.86

Pickup available at

Brisbane (Virginia)

Gold Coast (Molendinar)

Melbourne (Derrimut or Dandenong South Central)

Newcastle (Cardiff)

Adelaide (Kilburn)

Perth (Jandakot)

DELIVERY AND PICK UP INFORMATION

20 depots across Australia are now fully operational.

Check individual listings for which products are stocked in which locations.

Alumawood Heavy duty top/bottom rail 5800mm - Image 1
Alumawood Heavy duty top/bottom rail 5800mm
$241.86
Alumawood Heavy duty top/bottom rail 5800mm - Image 1
Alumawood Heavy duty top/bottom rail 5800mm - Image 2
Alumawood Heavy duty top/bottom rail 5800mm - Image 3
Alumawood Heavy duty top/bottom rail 5800mm - Image 4
Alumawood Heavy duty top/bottom rail 5800mm
$241.86
Finish: Kwila
Description

TECH SPECS

• PP 219 / AP 219

• Alloy 6063-T5 / 5800mm long for WRC & Kwila finish

• Alloy 6063-T5 / 6100mm long for Monument finish

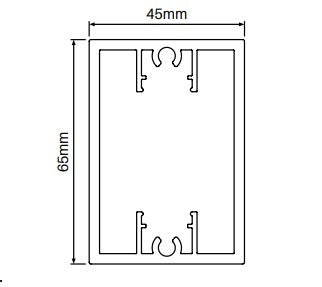

• 3mm wall thickness

• Heavy duty top/bottom rail used for wide gates

• Also required for vertical slat gates, horizontal gates with variable spacing or gates fitted with a lockbox

• Non weld assembly using 12 gauge screws into screw flutes (Code: XP-SCREWSGF-10PK)

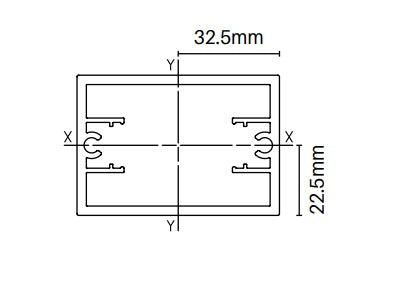

• lxx = 206.98 x 10E3 mmE4 65mm • lyy = 427.32 x 10E3 mmE4
