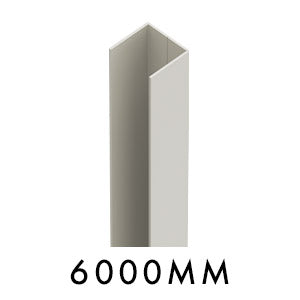

30mm x 33mm Aluminium U-Channel – 6000mm Length

This 30mm x 33mm aluminium U-channel extrusion is supplied in a full 6000mm length for fabrication, screening and building applications requiring the PP 181 / AP 181 profile.

Manufactured from 6063-T5 aluminium, the channel is available in a range of powder-coated colours or an uncoated mill finish. It can be measured, cut and drilled on site to suit your project.

Product Specifications

• Profile: PP 181 / AP 181

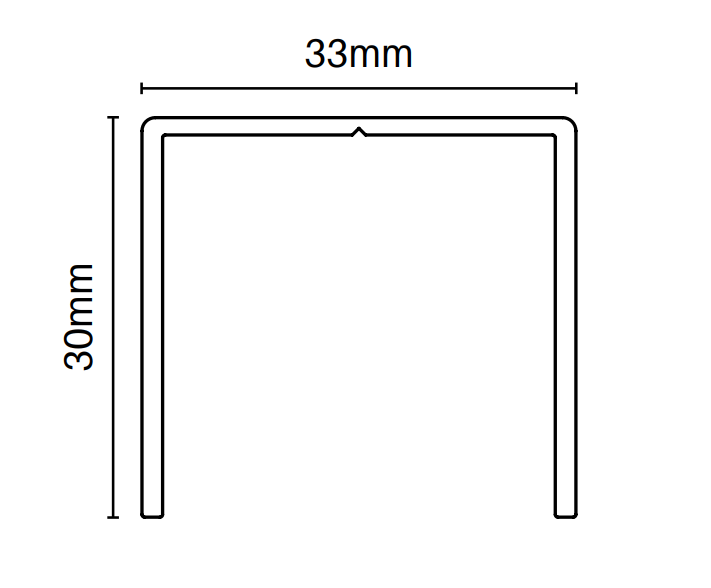

• Channel size: 30mm x 33mm

• Length: 6000mm

• Material: Aluminium

• Alloy: 6063-T5

• Side-wall thickness: 1.55mm

• Rear-wall thickness: 1.3mm

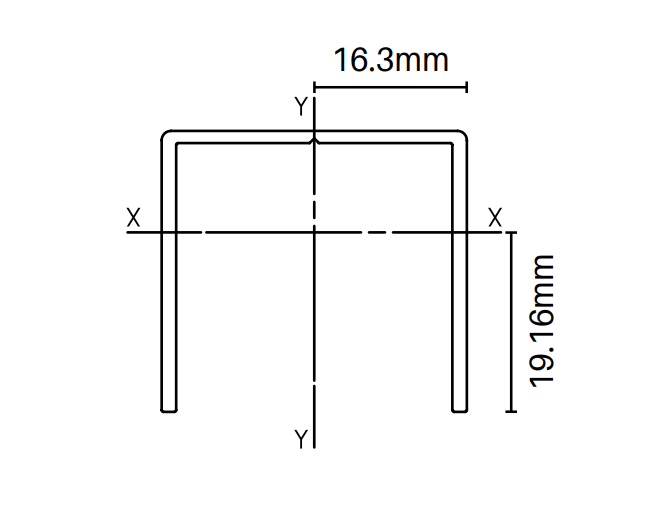

• Ixx: 12.46 x 10³ mm⁴

• Iyy: 25.09 x 10³ mm⁴

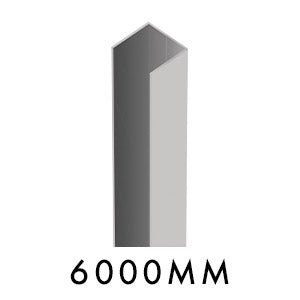

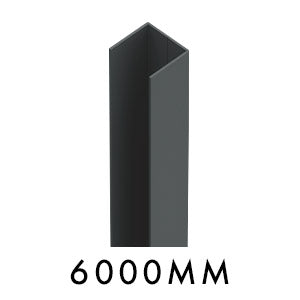

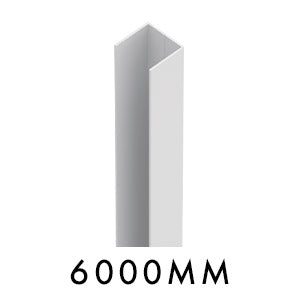

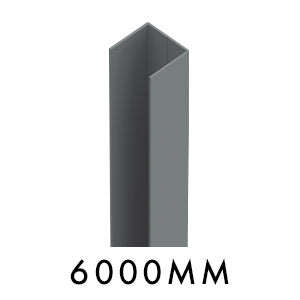

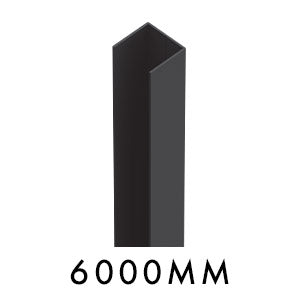

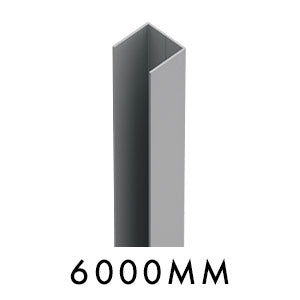

• Available finishes: Black, Monument, Woodland Grey, Silver, Surfmist, White, Basalt, Dune and Mill

Applications & Compatibility

This aluminium U-channel is suitable for builders, fabricators, installers and experienced DIY customers requiring the PP 181 / AP 181 profile.

U-channels are available in different dimensions, wall thicknesses and profiles, so this product should not be treated as a universal channel. Confirm the required dimensions and profile before ordering.

If you are matching this extrusion with another Glasshouse AU product and are unsure about compatibility, please contact us before purchasing.

What's Included?

Each quantity ordered includes:

• One 6000mm length of 30mm x 33mm aluminium U-channel

• Your selected powder-coated or mill finish

Screws, brackets, end caps, joiners and other installation components are not included unless specifically stated.

Cutting & Drilling

The aluminium extrusion can be cut and drilled on site using suitable tools and aluminium-cutting techniques.

Cutting or drilling a powder-coated extrusion may expose raw aluminium at the worked area. Consider whether exposed areas need to be treated or concealed for your application.

Collection & Delivery

Free Collection

Free collection is available by prior arrangement from selected depots in:

• Gold Coast

• Brisbane

• Adelaide

• Melbourne

• Cardiff

• Perth

These locations are collection depots only. Products cannot be purchased or viewed at the depot, and collection must be arranged in advance.

Delivery Areas

Delivery is available to selected areas, including:

• Sunshine Coast – as far north as Noosa

• Brisbane metro

• Gold Coast

• Northern Rivers – north of Ballina

• Tweed

• Melbourne metro

• Adelaide metro

• Cardiff metro

• Perth metro

If your location is outside these areas, please contact us to discuss whether delivery may be possible.

Important: This product is supplied as a full 6000mm (6 metre) length. Consider transport requirements before choosing collection.

Frequently Asked Questions

What size is this aluminium U-channel?

The channel measures 30mm x 33mm and is supplied in a 6000mm (6 metre) length. The profile reference is PP 181 / AP 181.

What aluminium is the channel made from?

The extrusion is manufactured from 6063-T5 aluminium.

What colours are available?

Available finishes include Black, Monument, Woodland Grey, Silver, Surfmist, White, Basalt, Dune and Mill. Mill finish is uncoated aluminium.

Can I cut the 6000mm U-channel to size?

Yes. The aluminium extrusion can be measured and cut on site using suitable aluminium-cutting equipment and techniques. Cutting a coated extrusion may expose raw aluminium at the cut edge.

Can the aluminium U-channel be drilled?

Yes. The extrusion can be drilled using appropriate tools and techniques for aluminium. Drilled areas may expose the underlying aluminium.

Is this U-channel compatible with every panel or slat?

No. This is a specific 30mm x 33mm PP 181 / AP 181 profile. Compatibility depends on the dimensions and design of the adjoining component. Check your required profile before ordering.

Is the channel suitable for coastal areas?

Suitability depends on the selected finish, proximity to saltwater and the level of environmental exposure. For coastal or high-corrosion locations, confirm that the selected finish is appropriate for your installation before ordering.

Can I collect the 6 metre aluminium channel?

Yes. Free collection is available by prior arrangement from selected depots in Gold Coast, Brisbane, Adelaide, Melbourne, Cardiff and Perth.

Because the extrusion is 6000mm long, ensure your vehicle is suitable for transporting the full length and that appropriate supports and legal load restraints are used.

Do you deliver 6000mm aluminium extrusions?

Delivery is available to selected areas across Queensland, New South Wales, Victoria, South Australia and Western Australia. See the delivery areas above or contact Glasshouse AU if you are outside the listed locations.

Need Help Confirming the Correct Profile?

Before ordering, check that PP 181 / AP 181 and the 30mm x 33mm dimensions match the requirements of your project.

If you're unsure whether this aluminium U-channel is compatible with your application or another Glasshouse AU product, contact us before ordering.
