Aluminium Heavy duty post 65mm x 65mm 2400MM or 6000MM LONG• PP 255 / AP 255• Alloy 6063-T6 / Mill finish• 2400mm or 6000mm long• 3mm wall thickness• 4x Diameter 5mm screw flutes• 2400mm post Includes aluminium flat top cap; Top cap for 6000mm post sold separately (top cap code: XP-65TP-M) 4x screw flutes...
- from $70.14
- from $70.14
- Unit price
- per
-
65x65mm heavy duty post 2400mm H 3mm wall thickness, heavy duty, with top cap• 65x65mm larger profile, heavy duty post • Alloy 6063 - T6 • 3mm wall thickness • Screw flutes to screw on base plate if required • Free aluminium powder coated press-in top plate included
- from $82.24
- from $82.24
- Unit price
- per
-
U channel 65mm x 37mm 5800MM LONG• PP 182 / AP 273• Alloy 6063-T5 / Mill finish• 5800mm long• 1.3mm wall thickness U channel affixes to wall or post on both sideof panel. Assembled louvre panel side frames fit neatly into U channel.U channels are effective to overcome out of...
- $48.77
- $48.77
- Unit price
- per
-
88mm x 11mm louvre blade 5800MM LONG• PP 181 / AP 181• Alloy 6063-T6 / Mill finish• 1.3mm wall thickness with 1.6mm centre web• lxx = 3.35 x 10E3 mmE4• lyy = 149.82 x 10E3 mmE4 Available for local delivery or collection only. Stocked in Brisbane but can transfer to...
- $57.00
- $57.00
- Unit price
- per
-
200mm mounting arm• Fixing plates welded both sides - 100mm L x 26mm W x 10mm D• 2x Diameter 9mm fixing holes (plate 1) & 2x 7mm fixing holes (plate 2)
- from $30.23
- from $30.23
- Unit price
- per
-
88mm x 11mm louvre blade with screw flutes 5800MM LONG• PP 181 / AP 181• Alloy 6063-T6 / Mill finish• 1.3mm wall thickness• lxx = 3.42 x 10E3 mmE4• lyy = 171.96 x 10E3 mmE4• 2x Diameter 4.9mm screw flutes Available for local delivery or collection only Stocked in Brisbane but can transfer...
- $66.80
- $66.80
- Unit price
- per
-
Louvre panel screws - 50 PK• Bag of 50 ; Stainless steel 304• 12g x 25mm long panhead screws with square Drive• Use screws to affix side frame to screw flute blades or affix non-machined frame to side frames and/or midrail/centre support rail• Lubricate screws before screwing off
- from $5.00
- from $5.00
- Unit price
- per
-
Black 65x65mm Aluminium Post - 2400mm with top cap, 3mm wall thickness, heavy duty• 65x65mm larger profile, heavy duty post • Alloy 6063 - T6 • 3mm wall thickness • Screw flutes to screw on base plate if required • Free aluminium powder coated press-in top plate included Satin Black
- $86.47
- $86.47
- Unit price
- per
-
Non-machined frame 60mm x 35mm 5800MM LONG• PP 190 / AP 190• Alloy 6063-T5 / Mill finish• 5800mm long with no pre-slotted holes• 2x Diameter 3.7mm screw flutes 2 part frame hides fixings after assembly.Use as top/bottom frame to create a fully framed louvre panel.Designed to screw fix into screw...
- $99.77
- $99.77
- Unit price
- per
-
Drill jig• Hardened steel drill jig• Use when attaching non machined top/ bottom frame to side frame, midrail or centre support rail• Must be used if screwing top/bottom frame to side frame or midrails. If welding top/bottom frame, drill jig is not required
- $38.58
- $38.58
- Unit price
- per
-
Side frame drill jig• 2mm galvanised steel• Provides positioning for fixing screw fluted louvre blades to side frame• Easy to use jig which ensures accuracy of assembly of screw fluted blades to side frames
- $17.20
- $17.20
- Unit price
- per
-
Slotted mid-rail 60mm x 42mm 9MM SPACING 5800MM LONG• PP 203 / AP 203• Alloy 6063-T5 / Mill finish• 5800mm long with 132x pre-slotted holes (both sides) at 30 Degrees • 2x Diameter 3.7mm screw flutes Use on spans wider than 1500mm 1 piece midrail (slotted on both sides). Slide midrail along...
- $159.62
- $159.62
- Unit price
- per
-
Frame cap• Press in cap - UV stabilised PA66• Fits 60x35mm louvre side frames and non-machined frame• Black, white or silver finish
- $2.70
- $2.70
- Unit price
- per
-
Louvre blade end cap• Press in cap - UV stabilised PA66• Fits 88x11mm louvre blade (PL-5800-B88-M). Does not fit screw fluted louvre blade• Black, white or silver finish
- $2.70
- $2.70
- Unit price
- per
-
LEFT slotted gate side frame 60mm x 50mm 9MM SPACING 5800MM LONG• PP 220 / AP 220• Alloy 6060-T5 / Mill finish• 5800mm long with 66x pre-slotted holes at 30 Degrees • 3mm wall thickness Sturdy side frame ideal for manufacture of pedestrian gates with 9mm spaced louvreblades. Weld louvre blades into position.Suggested to weld...
- $209.00
- $209.00
- Unit price
- per
-
RIGHT slotted gate side frame 60mm x 50mm 9MM SPACING 5800MM LONG• PP 220 / AP 220• Alloy 6060-T5 / Mill finish• 5800mm long with 66x pre-slotted holes at 30 Degrees • 3mm wall thickness Sturdy side frame ideal for manufacture of pedestrian gates with 9mm spaced louvreblades. Weld louvre blades into position.Suggested to weld...
- $208.00
- $208.00
- Unit price
- per
-
LEFT side frame 60mm x 35mm NIL SPACING 5800MM LONG• PP 190 / AP 190• Alloy 6063-T5 / Mill finish• 5800mm long with 75x pre-slotted holes at 30 Degrees • 2x Diameter 5mm screw flutes• Patented friction fit left side frame for quick and easy assembly Pre-powdercoated lengths of side frame and louvre...
- $112.00
- $112.00
- Unit price
- per
-
RIGHT side frame 60mm x 35mm NIL SPACING 5800MM LONG• PP 190 / AP 190• Alloy 6063-T5 / Mill finish• 5800mm long with 75x pre-slotted holes at 30 Degrees • 2x Diameter 5mm screw flutes• Patented friction fit right side frame for quick and easy assemblyPre-powdercoated lengths of side frame and louvre blades...
- $112.00
- $112.00
- Unit price
- per
-
Slotted mid-rail 60mm x 42mm NIL SPACING 5800MM LONG• PP 203 / AP 203• Alloy 6063-T5 / Mill finish• 5800mm long with 150x pre-slotted holes (both sides) at 30 Degrees • 2x Diameter 3.7mm screw flutes Use on spans wider than 1500mm 1 piece midrail (slotted on both sides). Slide midrail along...
- $159.62
- $159.62
- Unit price
- per
-
115mm x 100mm base plate set• Alloy 6063-T6 / Mill finish• 10mm thick• 4x Diameter 11mm CSK holes• 4x SS304 CSK screws included to affix base plate to post Base plate can be screw fixed to 65x65mm post via screw flutes or can be welded to post
- $19.29
- $19.29
- Unit price
- per
Fixed Louvre System Hardware
Fixed Aluminium Louvres & Privacy Screening Systems
Create fixed aluminium louvre panels, privacy screens and pedestrian gates with our range of aluminium louvre blades, pre-slotted frames, posts and assembly components.
The fixed louvre system uses 88mm x 11mm aluminium blades with compatible side frames, mid-rails and framing components, giving you the parts required to fabricate louvre screening to suit your project.

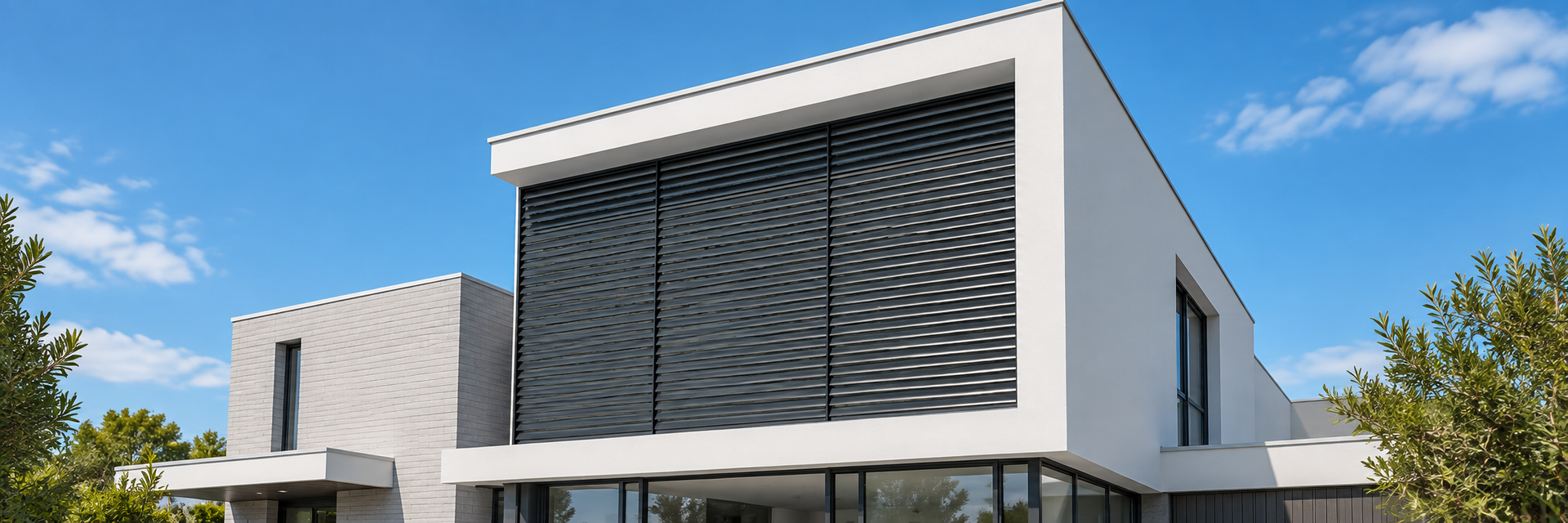

Fixed Aluminium Louvre Screening
Fixed aluminium louvres provide a permanent angled-blade screening solution for outdoor areas around homes and commercial properties.
Unlike adjustable louvres, the blades in this system are installed at a fixed angle. Compatible pre-slotted side frames position the louvre blades at 30 degrees, helping simplify fabrication and maintain consistent blade positioning throughout the panel.
The range includes components for building fixed louvre screens, framed louvre panels and pedestrian gates.
88mm Aluminium Louvre Blades
The system uses 88mm x 11mm aluminium louvre blades manufactured from 6063-T6 aluminium alloy.
Two blade profiles are available:
-
88mm x 11mm standard louvre blade
-
88mm x 11mm louvre blade with screw flutes
Both profiles are supplied in 5800mm lengths.
The screw-fluted blade includes two 4.9mm diameter screw flutes, allowing it to be mechanically fixed to compatible framing components.
Because these are long 5800mm aluminium extrusions, check the individual product page for current collection and delivery options before ordering.
Pre-Slotted Louvre Side Frames
Compatible 60mm x 35mm left and right side frames are available with pre-slotted openings at 30 degrees.
The patented friction-fit side frames allow compatible louvre blades to be positioned consistently along the sides of the panel.
The range includes NIL-spacing side frames, along with additional profiles for other panel configurations. Make sure the left and right frames, blade type and spacing configuration selected are compatible before ordering.
Mid-Rails for Wider Louvre Panels
For louvre panel spans wider than 1500mm, compatible 60mm x 42mm slotted mid-rails are available.
The mid-rail is slotted on both sides so it can provide intermediate support within the louvre panel while maintaining the fixed blade angle and spacing.
Both NIL-spacing and 9mm-spacing mid-rail options are available within the range.
Framing Your Aluminium Louvre Panel
A 60mm x 35mm non-machined aluminium frame can be used as the top and bottom frame to create a fully framed louvre panel.
This two-part frame is designed to conceal fixings after assembly and can be screw-fixed into compatible side frames, mid-rails or centre support rails.
When screw-fixing the top or bottom frame, the compatible hardened-steel drill jig is used to correctly position the required holes. The drill jig is not required where the top or bottom frame is welded instead.
Aluminium Posts & U-Channel
The collection also includes 65mm x 65mm heavy-duty aluminium posts with a 3mm wall thickness for compatible screening applications.
A 65mm x 37mm aluminium U-channel can be fixed to a wall or post on either side of a panel. The assembled louvre panel side frame fits inside the U-channel, providing another installation option for the completed panel.
Compatible post base plates and top caps are also available within the range.
Fixed Louvre Pedestrian Gates
Dedicated 60mm x 50mm left and right slotted gate side frames are available for manufacturing pedestrian gates using the fixed louvre system.
The gate frames feature pre-slotted openings at 30 degrees and are designed for use with 9mm-spaced louvre blades. The product specifications recommend welding the louvre blades into position when manufacturing the gate.
Louvre Panel Fixings, Caps & Assembly Tools
Complete your fixed aluminium louvre system with compatible components including:
-
Stainless steel 304 louvre panel screws
-
Louvre blade end caps
-
60mm x 35mm frame caps
-
Side frame drill jig
-
Hardened-steel frame drill jig
-
Aluminium post base plates
-
Aluminium U-channel
-
Mounting components
Check the individual product specifications before ordering, as compatibility varies between blade, frame and spacing configurations.
Fixed Aluminium Louvre FAQs
What is a fixed aluminium louvre system?
A fixed aluminium louvre system uses aluminium blades installed at a permanent angle within a supporting frame. The Glass House AU system includes 88mm x 11mm louvre blades and compatible pre-slotted frames, mid-rails, posts and assembly components for fabricating fixed louvre panels and screening.
Are these louvres adjustable?
No. This collection is designed around fixed louvre blades rather than operable or adjustable louvres. The compatible pre-slotted frames position the blades at a fixed 30-degree angle.
What size are the aluminium louvre blades?
The louvre blades are 88mm wide x 11mm deep and are supplied in 5800mm lengths. Standard and screw-fluted blade profiles are available.
What angle are the louvre blades installed at?
Compatible pre-slotted side frames and mid-rails position the louvre blades at 30 degrees.
Do wide louvre panels require a mid-rail?
The 60mm x 42mm slotted mid-rail is specified for use on louvre panel spans wider than 1500mm. Select the appropriate NIL-spacing or 9mm-spacing profile for your panel configuration.
Can I build a framed louvre privacy screen?
The range includes louvre blades, pre-slotted side frames, non-machined top and bottom framing, mid-rails, posts, U-channel, fixings and caps that can be used to fabricate fixed aluminium louvre panels.
Can I build an aluminium louvre gate?
Dedicated 60mm x 50mm left and right gate side frames are available for manufacturing pedestrian gates with 9mm-spaced louvre blades. The gate-frame specifications recommend welding the louvre blades into position.
What is the difference between NIL spacing and 9mm spacing?
These terms refer to the blade-spacing configuration of compatible pre-slotted framing components. Match the side frames and mid-rails to the required spacing configuration when selecting components for your louvre panel.
Are louvre blade end caps compatible with both blade profiles?
No. The louvre blade end cap listed in this collection fits the standard 88mm x 11mm louvre blade and does not fit the screw-fluted louvre blade.
Can the aluminium louvre panels be mounted between posts or walls?
The range includes 65mm x 37mm U-channel designed to affix to a wall or post, with the assembled louvre panel side frame fitting inside the channel. Check the individual components and project requirements before installation.
Shop Fixed Aluminium Louvre Components
Build your fixed louvre screening system with compatible aluminium blades, side frames, mid-rails, posts, U-channel, gate frames, fixings and assembly accessories.
Select the required blade and spacing configuration first, then match the compatible framing and installation components for your project.
